Schmalz part

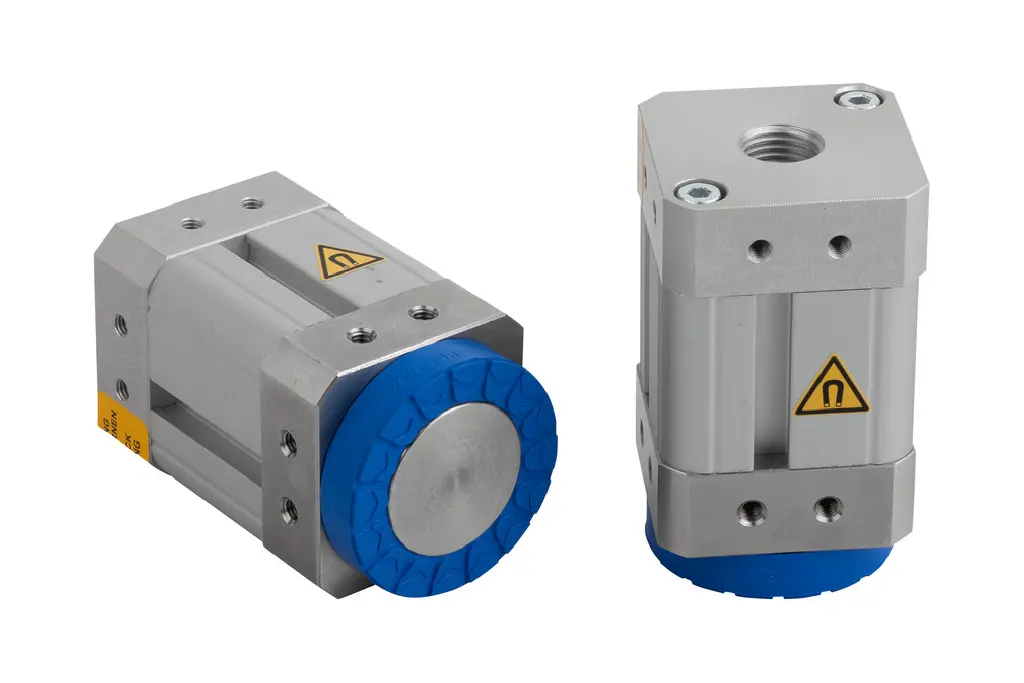

SGM-HD 40 G1/4-IG
Part no.: 10.01.17.00185
Magnetic gripper for handling metal sheets with holes, Stainless-steel housing base
Price
$810.15
excl. VAT, shipping & packagingSpecifications
| Size | 40 |
|---|---|
| Socket | G1/4"-F |
| Holding force max. with friction ring | 100 (N) |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
Product family
The magnetic grippers from Schmalz make it easier to handle complex laser-cut ferromagnetic workpieces. The permanent magnet is moved over compressed air. This is how the magnetic workpiece is gripped and deposited again.
| Length L | 8.8 – 200 mm |
|---|---|
| Weight | 1.5 – 255 g |
| Height H | 3 – 123.2 mm |
| Outside diameter D | 3 – 75 mm |
| Size | 20 – 70 |
| Operating temperature | 5 ... 70 °C, °C, -25.0 ... 80.0 °C |
| Thread G1 | G1/4"-F, M6-F, M8-F, M4-M, M3-M … |
| Height H2 | 3.5 – 20.5 mm |
| Width B | 15 – 50 mm |
