Schmalz part

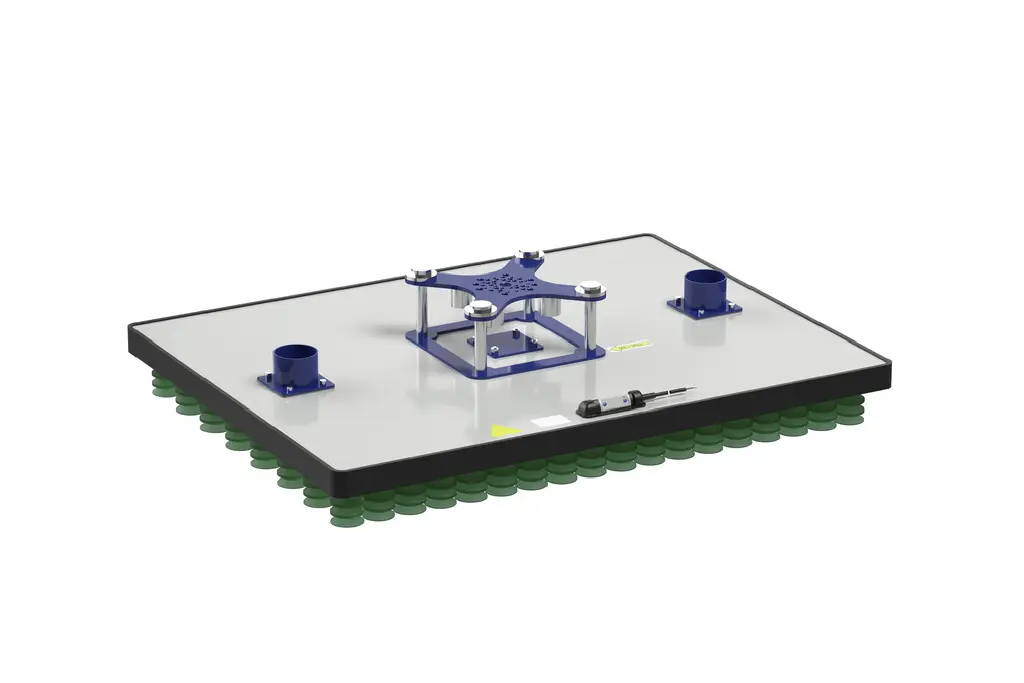

ZLW FL 850x650 SE SPB2 40 45T
Part no.: 10.01.22.07821
Modular lightweight gripper for (de)palletizing workpiece layers
Price
$16,077.18
excl. VAT, shipping & packagingSpecifications
| Length L | 850 (mm) |
|---|---|
| Width B | 650 (mm) |
| Version | Straight edge |
| Arrangement suction cells | Triangle, 45 mm |
| Valve type | Flow restrictor |
| Shape fittings | Pillar straight, 2 x Ø 60 |
| Additional function area gripper | Vacuum switch VSi |
| Weight | 15.6 (kg) |
Product family
Layer gripper in lightweight construction
| Width B | 350 – 650 mm |
|---|---|
| Width B1 | 316 – 646 mm |
| Internal diameter d1 | 31.5 mm |
| d2 | 40 mm |
| Hole size d3 | 50 mm |
| Hole size d4 | 63 mm |
| Hole size d5 | 64 mm |
| Inside / bore diameter d6 | 80 mm |
| Height H | 53 – 82.9 mm |
