Schmalz part

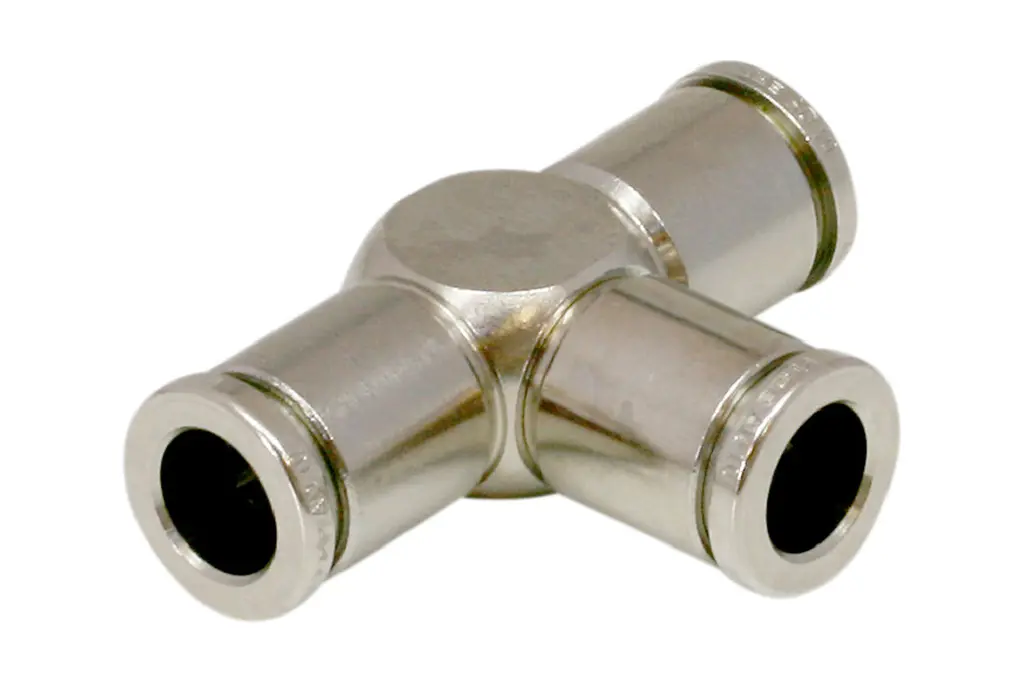

SVB-T 10
Part no.: 10.09.02.00025
Plug connection, T
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Outer hose diameter | 10 (mm) |
|---|---|
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Length L | 55.5 (mm) |
Product family
All hoses and connections which are required to design a functioning vacuum system are available here. This includes, for example, vacuum hoses, plug-in screw unions, sealing rings and hose clamps.
| External/Internal diameters | 4/2 to 87/75 mm |
|---|---|
| Material | PA, PE, PU, PVC |
| Clamping range | 10 to 90 mm |
| Outer hose diameter | 60 to 112 mm |
| Connection thread | M5 to G1/2" |
| Material (fittings) | nickel-plated brass |
| Rotation speed | 21 to 3,500/min |
| Internal diameters (sealing rings) | 3.5 to 48 mm |
