Schmalz part

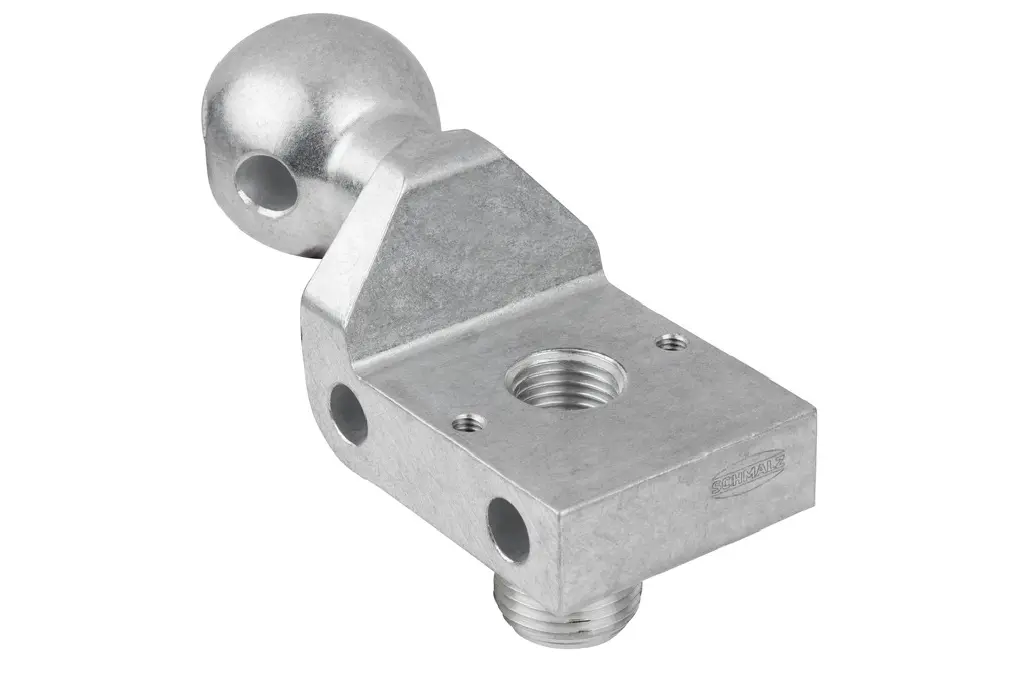

HT-SG A5 E 35 NPT3/8-AG
Part no.: 10.07.06.00442
Holder for suction cup
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Connection 1 | Ball head 32 mm |
|---|---|
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Product family | HT-SG-E |
| Suction cup connection | NPT3/8-M |
Product family
Suction cup connection for G-, NPT-, M-threads and rectangular adapters
| Width B | 35 – 46 mm |
|---|---|
| Outside diameter D | 19 – 32 mm |
| Thread G1 | G1/4"-F |
| Thread G4 | M4-F |
| Height H | 24.5 mm |
| Height H1 | 41.2 – 65.5 mm |
| Length L | 39.3 – 45.5 mm |
| Length L1 | 72.5 – 82 mm |
| Length L2 | 60.8 – 67 mm |
