Schmalz part

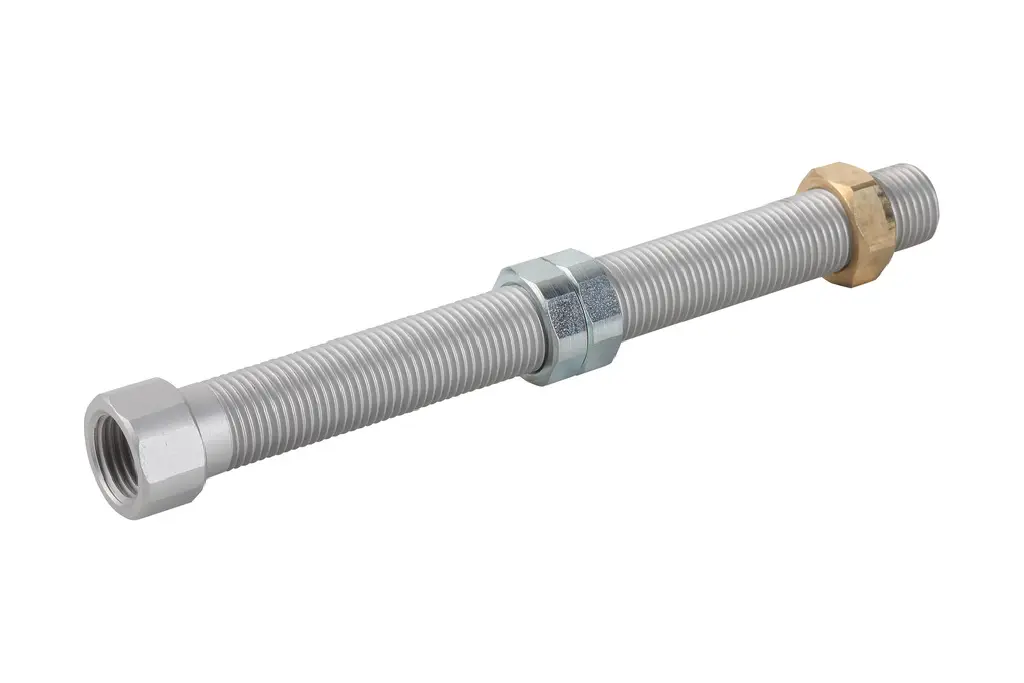

SAUG-ANB G1/4-AG 200
Part no.: 10.01.03.00308
Suction cup connection (rigid)
Price
$98.40
excl. VAT, shipping & packagingSpecifications
| Suction cup connection | G1/4"-M |
|---|---|
| Length L | 200 (mm) |
Product family
The holder is for suspending the suction cup on the gripping system or robot arm. Different types for aluminum sections or square and round tubes are available.
| Length L | 3 – 200 mm |
|---|---|
| Length L1 | 5 – 190 mm |
| Thread G1 | M6-F, G1/4"-M |
| Outside diameter D | 32 – 58.9 mm |
| Thread G2 | G1/4"-F, G1/8"-F |
| Key width SW1 | 17 mm |
| Internal diameter d | 16.5 – 32 mm |
| Material | Steel, Polyamide |
| Surface | galvanised |
