Schmalz part

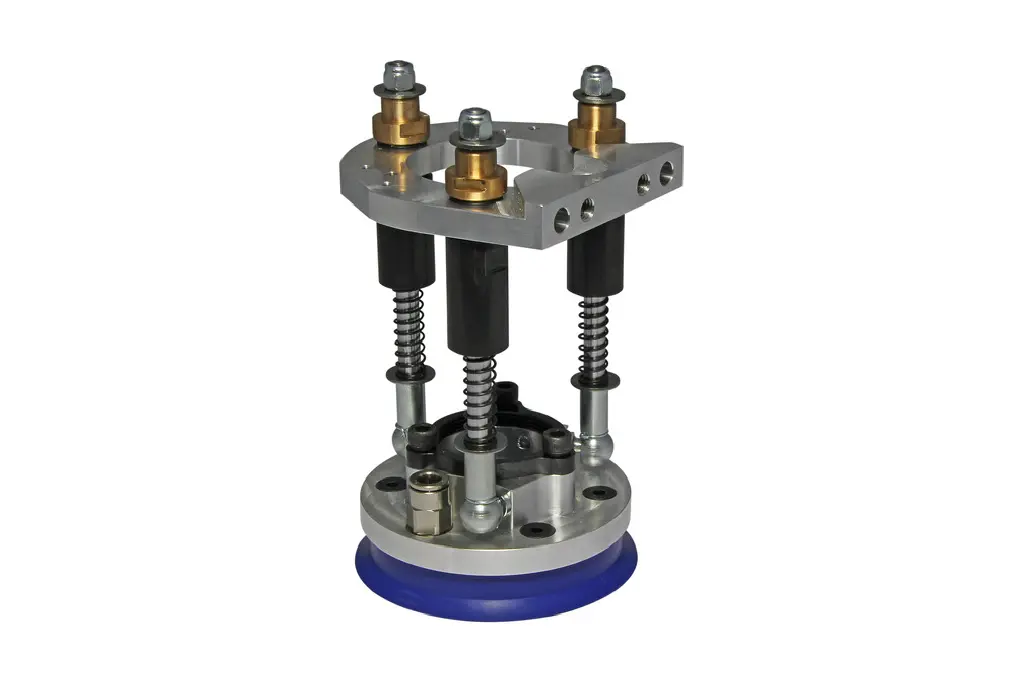

DBD 130x187 80 M54
Part no.: 10.01.04.00418
Holder for double-blank sensors for reliable detection of individual sheets during destacking
Price
$2,894.24
excl. VAT, shipping & packagingSpecifications
| Outside diameter D | 130 (mm) |
|---|---|
| Height H | 187 (mm) |
| Spring stroke Z | 80 (mm) |
| Additional function suction cup | M54 sensors |
Product family
Holder for double-blank sensors for reliable detection of individual sheets during destacking
| Outside diameter D | 100 – 130 mm |
|---|---|
| Diameter Ds | 99.5 – 128.8 mm |
| Thread G1 | M8-F |
| Height H | 145 – 189 mm |
| Height H1 | 179 – 223 mm |
| Length L | 80 mm |
| Hole spacing X1 | 32 mm |
| Hole spacing X2 | 60 mm |
| Spring stroke Z | 36 – 80 mm |
