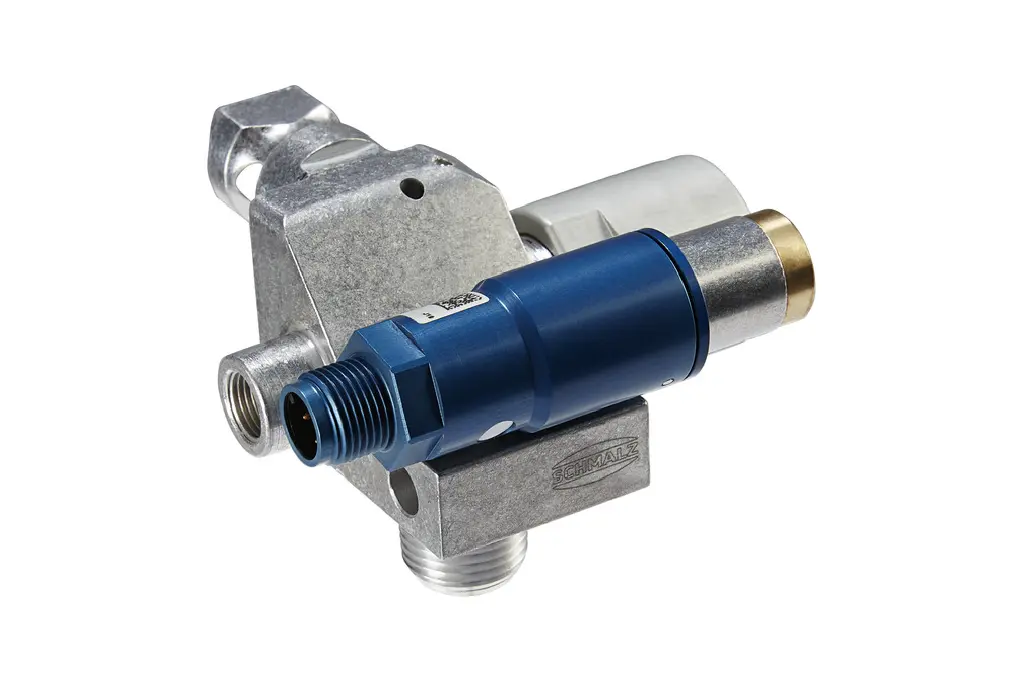

HT-SG A2 I 10 31 NPT3/8-AG AV VS 10.07.06.00592
Schmalz part

HT-SG A2 I 10 31 NPT3/8-AG AV VS

Part no.: 10.07.06.00592

Holder for suction cup

Price
$393.33
excl. VAT, shipping & packaging
Check availabilityPCE
View at SchmalzAll Holder Systems for Tooling HT variants

Specifications

Connection 1Bolt with slot Ø19mm
Shapeintegrated nozzle
Suction cup connectionNPT3/8-M
Product familyHT-SG-I
Additional functionAtmospheric ventilation

Product family

Lightweight holder system for toolings

Width B54.9 mm
Width B159.6 mm
Thread G2G1/8"-F
Thread G4M4-M
Height H12 mm
Height H121.85 – 24.1 mm
Length L28.2 – 38 mm
Length L147.85 mm
Length L238 mm
