Schmalz part
SCHL-AN W 60.5-60x60x45 PSSG
Part no.: 10.01.54.00016

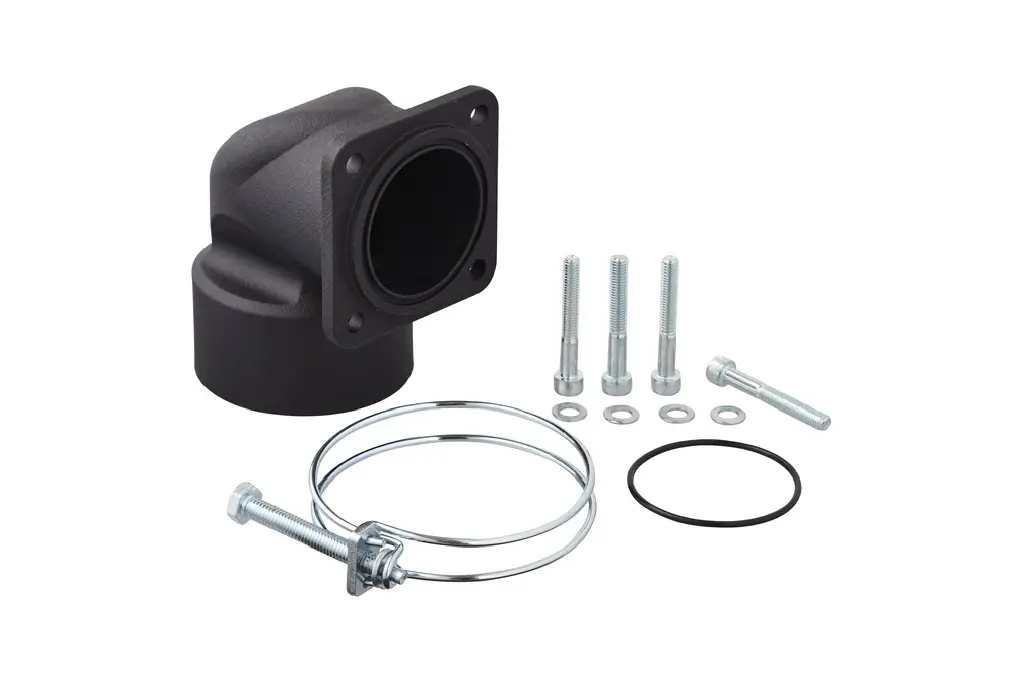

Hose connector - 90° pre-assemb
Price
$163.77
excl. VAT, shipping & packagingSpecifications
| Shape fittings | Angle |
|---|---|
| Outside diameter D | 60.5 (mm) |
| Height H | 45 (mm) |
| Hole spacing Y1 | 45 (mm) |
| Hole spacing X1 | 45 (mm) |
| Utilization design | PSSG |
Product family
The gripping systems and end-of-arm tooling (EOAT) solutions from Schmalz form the interface between robots and automation systems. These system combine modular building block systems with custom-made, flexible, productive and safe automation solutions for demanding gripping and handling tasks.
| Height H | 0.1 – 289 mm |
|---|---|
| Length L | 15.5 – 2170 mm |
| Width B | 15.8 – 646 mm |
| Arrangement suction cells | 3 rows, 18 mm, 5 rows, 18 mm |
| Material type | Foam open, height 20 mm, Foam open, height 2 x 10 mm, Foam open, height 10 mm |
| Additional function area gripper | Vacuum and pressure switch VSi, Adhesive tape on one side, Filter |
| Weight | 0.1 – 1250 g |
| Thread G1 | G1/8"-M, G1/2"-F, M3-F, G2"-M, G3/8"-F |
| Size | 12 – 100 |
