Schmalz part
FXP-SW90 1234 5R36 SPB2-20P
Part no.: 10.01.38.00748

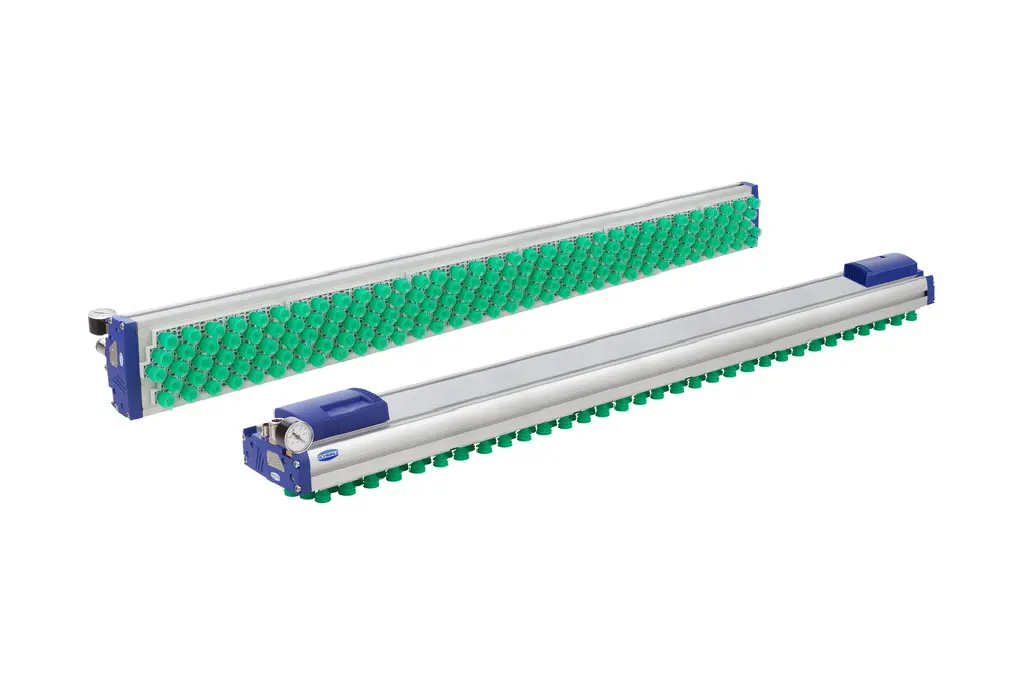

Vacuum area gripping system with integrated pneumatic vacuum generator and flow resistors
Price
$9,727.81
excl. VAT, shipping & packagingSpecifications
| Length L | 1234 (mm) |
|---|---|
| Width B | 130 (mm) |
| Arrangement | 5R36 |
| Number of suction cells | 165 |
| Design vacuum generator | Multi-stage ejector SEMP |
| Nozzle diameter | 0.9 (mm) |
| Air consumption [l/min] | 875 (l/min) |
| Weight | 7.5 (kg) |
| Product family | FXP |
Product family
The gripping systems and end-of-arm tooling (EOAT) solutions from Schmalz form the interface between robots and automation systems. These system combine modular building block systems with custom-made, flexible, productive and safe automation solutions for demanding gripping and handling tasks.
| Height H | 0.1 – 289 mm |
|---|---|
| Length L | 15.5 – 2170 mm |
| Width B | 15.8 – 646 mm |
| Arrangement suction cells | 3 rows, 18 mm, 5 rows, 18 mm |
| Material type | Foam open, height 20 mm, Foam open, height 2 x 10 mm, Foam open, height 10 mm |
| Additional function area gripper | Vacuum and pressure switch VSi, Adhesive tape on one side, Filter |
| Weight | 0.1 – 1250 g |
| Thread G1 | G1/8"-M, G1/2"-F, M3-F, G2"-M, G3/8"-F |
| Size | 12 – 100 |
