Schmalz part

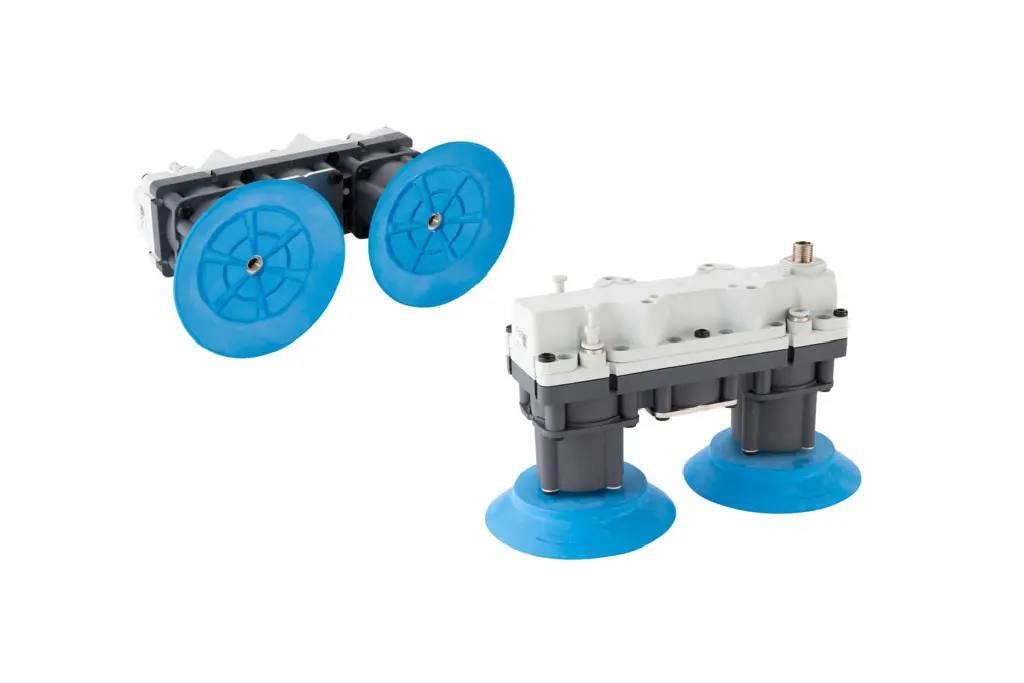

FMG 2 180x60x120 120 100-HT1
Part no.: 10.12.10.00206
Vacuum area gripper with individually activatable suction points
Price
$1,262.44
excl. VAT, shipping & packagingSpecifications
| Length L | 180 (mm) |
|---|---|
| Width B | 60 (mm) |
| Height H | 120 (mm) |
| Number of suction plates | 2 |
| Diameter Ds | 100 (mm) |
| Suction cup material | High temperature material HT1 |
| Suction stroke Zs | 7.5 (mm) |
| Cylinder stroke Z | 10 (mm) |
| Lift capacity (horizontal) | 804 (N) |
| Weight | 990 (g) |
| Communication | IO-Link (Class B) |
| Electrical connection | Male connect M12, 5 pol |
| Pressure range (operating pressure) [bar] | 4.0 ... 6.0 bar |
| Operating temperature max. | 50 (°C) |
Product family
The gripping systems and end-of-arm tooling (EOAT) solutions from Schmalz form the interface between robots and automation systems. These system combine modular building block systems with custom-made, flexible, productive and safe automation solutions for demanding gripping and handling tasks.
| Height H | 0.1 – 289 mm |
|---|---|
| Length L | 15.5 – 2170 mm |
| Width B | 15.8 – 646 mm |
| Arrangement suction cells | 3 rows, 18 mm, 5 rows, 18 mm |
| Material type | Foam open, height 20 mm, Foam open, height 2 x 10 mm, Foam open, height 10 mm |
| Additional function area gripper | Vacuum and pressure switch VSi, Adhesive tape on one side, Filter |
| Weight | 0.1 – 1250 g |
| Thread G1 | G1/8"-M, G1/2"-F, M3-F, G2"-M, G3/8"-F |
| Size | 12 – 100 |
