Schmalz part

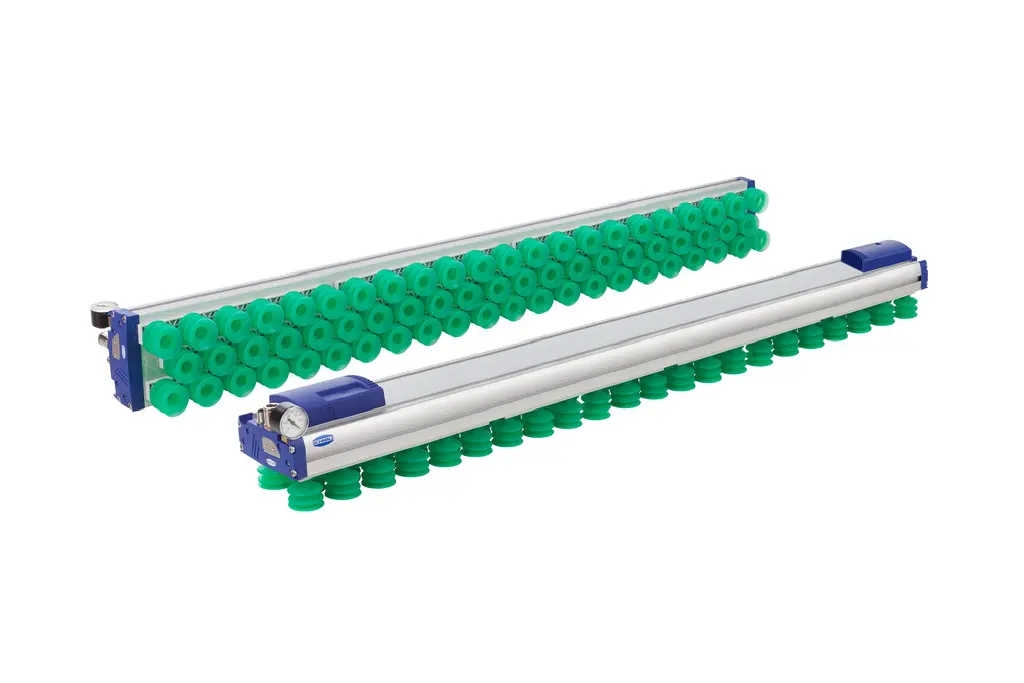

FXP-SW140 1234 3R54 SPB2-40P F
Part no.: 10.01.38.00733
Vacuum area gripping system with integrated pneumatic vacuum generator and flow resistors
Price
$8,005.77
excl. VAT, shipping & packagingSpecifications
| Length L | 1234 (mm) |
|---|---|
| Width B | 130 (mm) |
| Arrangement | 3R54 |
| Additional function area gripper | Filter |
| Number of suction cells | 66 |
| Design vacuum generator | Multi-stage ejector SEMP |
| Nozzle diameter | 1.4 (mm) |
| Air consumption [l/min] | 875 (l/min) |
| Weight | 8 (kg) |
| Product family | FXP |
Product family
The FXP is an area gripping system by Schmalz, featuring an integrated multi-stage ejector for pneumatic vacuum generation. It is designed for handling various workpieces, including porous materials, with suction areas ranging from 442 x 130 mm to 1,432 x 130 mm.
| Suction Area | 442 x 130 mm to 1,432 x 130 mm |
|---|---|
| Material | Aluminum base profile |
| Sealing | Plug-in cups or adhesive foam |
| Check Valves | SVK (porous) or flow resistors SW (smooth) |
| Vacuum Level | –0.25 bar (relative) |
| Intelligent Version | FXP-i with condition monitoring |
| Suction Force Improvement | 86% more suction force vs comparable |
