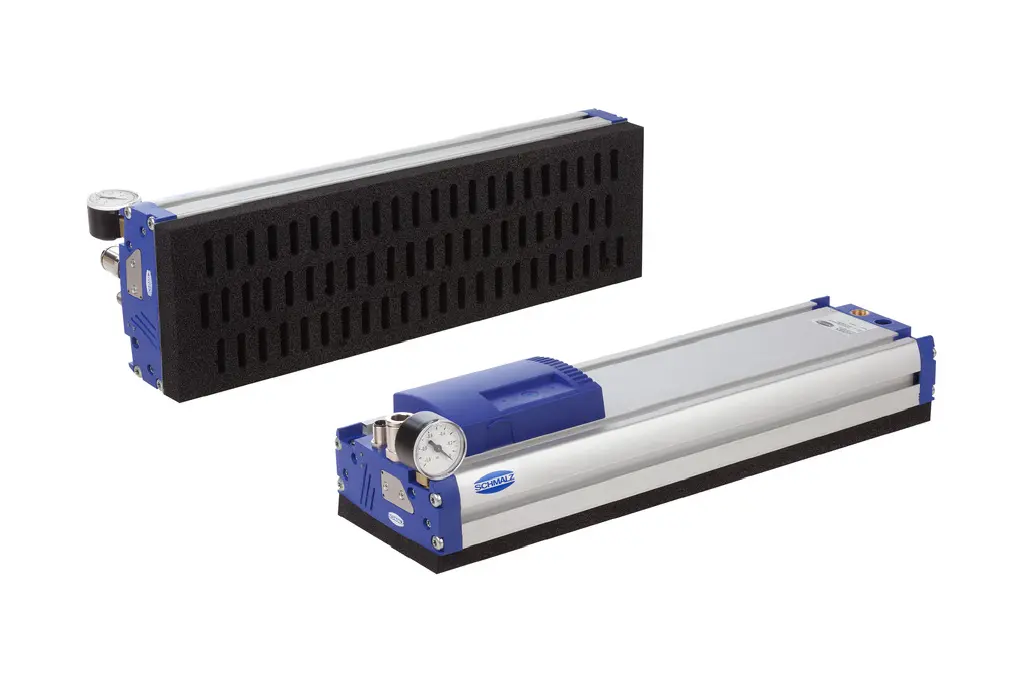

FXP Area Vacuum Gripper
Manufacturer: Schmalz (J. Schmalz GmbH)
Area gripping system, integrated multi-stage ejector (compressed-air)
The FXP is an area gripping system by Schmalz, featuring an integrated multi-stage ejector for pneumatic vacuum generation. It is designed for handling various workpieces, including porous materials, with suction areas ranging from 442 x 130 mm to 1,432 x 130 mm.
Price: Price $2,815.93-$16,244.11 (196 priced variants; 3 in stock)
Specifications
- Suction Area
- 442 x 130 mm to 1,432 x 130 mm
- Material
- Aluminum base profile
- Sealing
- Plug-in cups or adhesive foam
- Check Valves
- SVK (porous) or flow resistors SW (smooth)
- Vacuum Level
- –0.25 bar (relative)
- Intelligent Version
- FXP-i with condition monitoring
- Suction Force Improvement
- 86% more suction force vs comparable
