Schmalz part

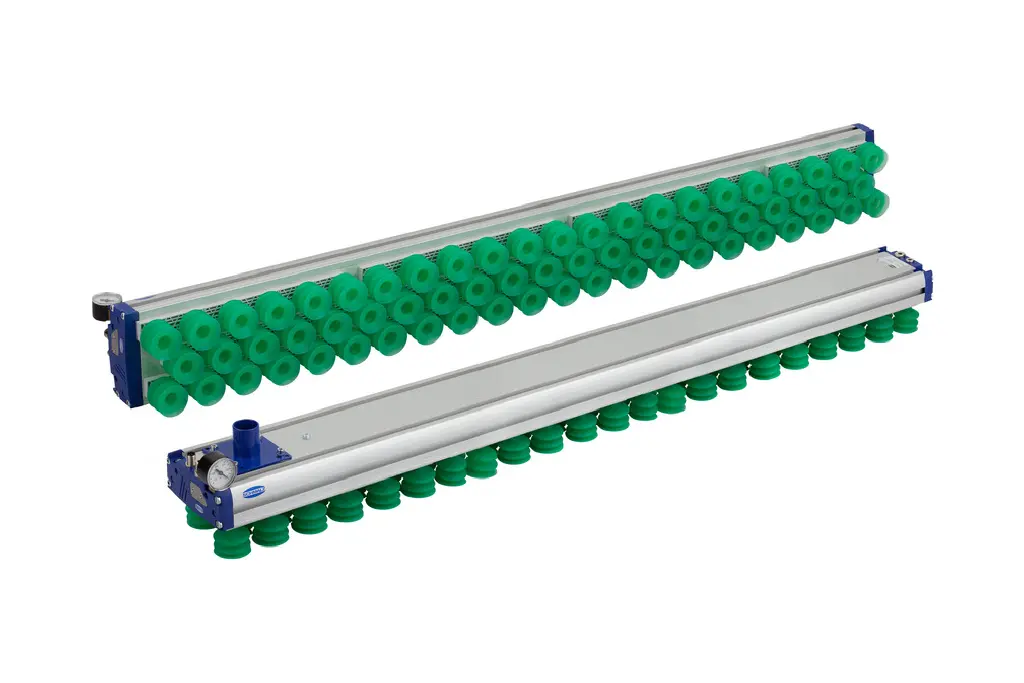

FMP-S-SVK 1036 3R54 SPB2-40-P G60
Part no.: 10.01.38.03470
Vacuum area gripping system for external vacuum generator, with ball check valves
Price
$6,760.68
excl. VAT, shipping & packagingSpecifications
| Length L | 1036 (mm) |
|---|---|
| Width B | 130 (mm) |
| Arrangement | 3R54 |
| Shape fittings | Straight |
| Outside diameter D | 60 (mm) |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Max. air consumption blow-off | 800 (l/min) |
| Weight | 6.5 (kg) |
| Product family | FMP |
Product family
The FMP Area Gripping System by Schmalz is designed for external vacuum generation, suitable for handling various workpieces regardless of size, geometry, material, or surface. It features a vacuum booster for fast evacuation and can achieve a vacuum level of up to -0.8 bar.
| Suction Area (LxB) | 442 x 130 mm to 1,432 x 130 mm |
|---|---|
| Vacuum Level | -0.8 bar |
| Weight | 2.8 kg to 7.5 kg (depending on model) |
| Air Consumption (blow-off) | 800 l/min |
| Material Type | Foam open, height 20 mm |
| Connection | External vacuum generation |
| Sealing Element | Sealing foam or suction cups |
| Control Valve | 1x control valve vacuum / blow-off |
| Construction | Vacuum switch normally open |
| Arrangement | 3R18 or 3R54 (depending on model) |
| Outside Diameter | 32 mm or 60 mm (depending on model) |
