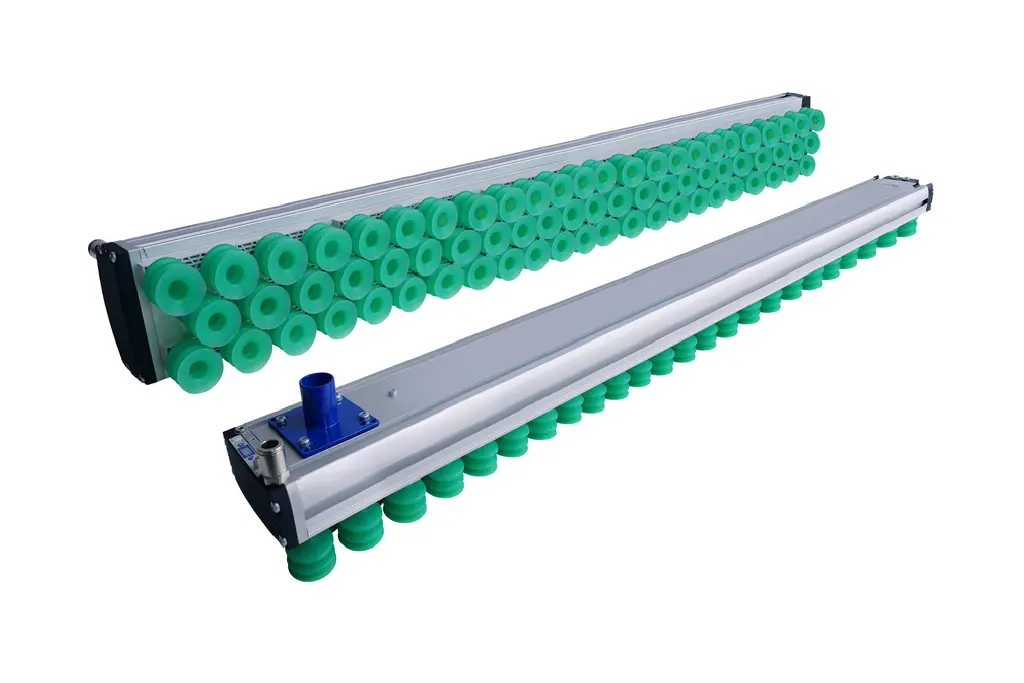

FMP Area Vacuum Gripper
Manufacturer: Schmalz (J. Schmalz GmbH)
Area gripping system, external vacuum generation
The FMP Area Gripping System by Schmalz is designed for external vacuum generation, suitable for handling various workpieces regardless of size, geometry, material, or surface. It features a vacuum booster for fast evacuation and can achieve a vacuum level of up to -0.8 bar.
Price: Price $1,570.10-$9,956.32 (210 priced variants; 6 in stock)
Specifications
- Suction Area (LxB)
- 442 x 130 mm to 1,432 x 130 mm
- Vacuum Level
- -0.8 bar
- Weight
- 2.8 kg to 7.5 kg (depending on model)
- Air Consumption (blow-off)
- 800 l/min
- Material Type
- Foam open, height 20 mm
- Connection
- External vacuum generation
- Sealing Element
- Sealing foam or suction cups
- Control Valve
- 1x control valve vacuum / blow-off
- Construction
- Vacuum switch normally open
- Arrangement
- 3R18 or 3R54 (depending on model)
- Outside Diameter
- 32 mm or 60 mm (depending on model)
