Schmalz part

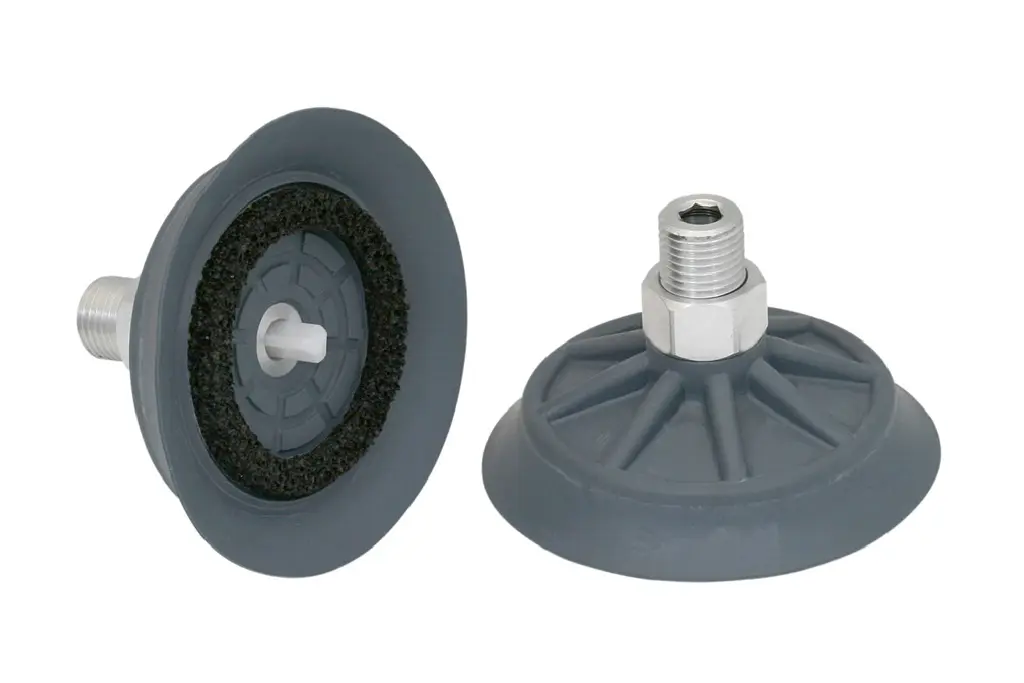

SHFN 70 NK-45 G1/4-AG MOS-TV
Part no.: 10.01.01.11698
Flat suction cup (round) for highly dynamic handling of wood
Price
$97.43
excl. VAT, shipping & packagingSpecifications
| Size | 70 |
|---|---|
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
Product family
Suction area (Ø) from 50 mm to 85 mm
| d2 | 21 – 62 mm |
|---|---|
| Nominal diameter dn | 4.4 mm |
| Diameter Dmax(S) | 54 – 89 mm |
| Diameter Ds | 52 – 85 mm |
| Thread G1 | G1/4"-F, G1/4"-M |
| Height H | 26.2 – 37.4 mm |
| Thread length LG1 | 10 – 12.4 mm |
| Key width SW1 | 17 mm |
| Spring stroke Z | 3 – 4 mm |
