Schmalz part

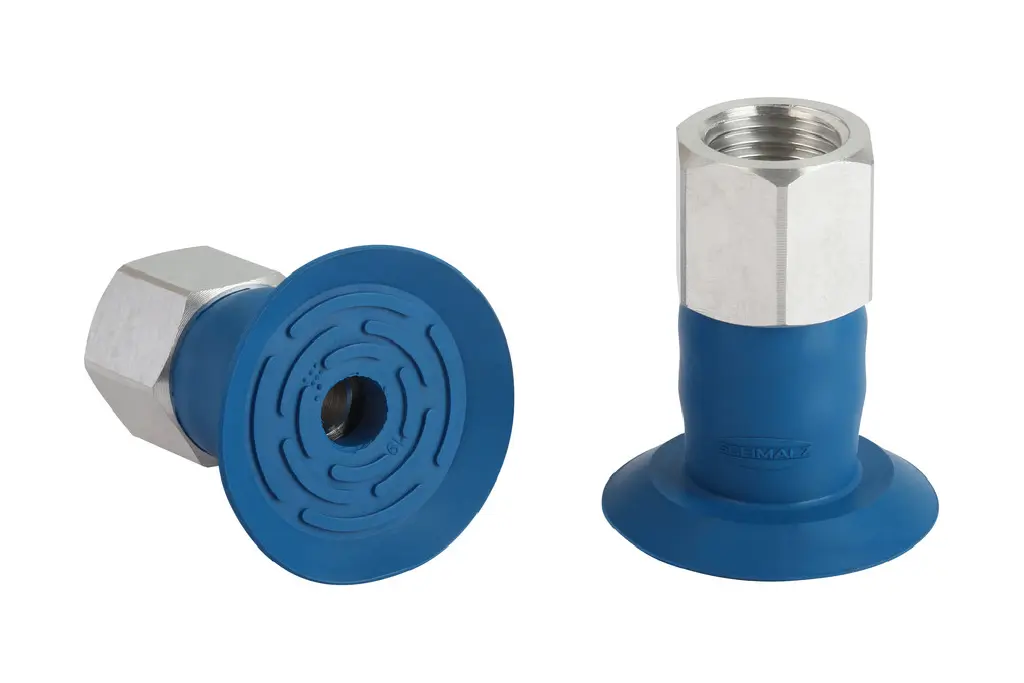

SGPN 30 HT1-60 G1/4-IG
Part no.: 10.01.01.12400
Flat suction cup (round) for careful gripping of paper, plastic film, etc.
Price
$34.80
excl. VAT, shipping & packagingSpecifications
| Size | 30 |
|---|---|
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Product family | SGPN |
Product family
Suction area (Ø) from 15 mm to 40 mm
| Nominal diameter dn | 2.5 – 5.5 mm |
|---|---|
| Diameter Dmax(S) | 15.5 – 42 mm |
| Diameter Ds | 14.5 – 40 mm |
| Thread G1 | G1/4"-F, G1/4"-M, G1/8"-F, G1/8"-M, M5-M |
| Height H | 15 – 38.5 mm |
| Thread length LG1 | 5 – 12 mm |
| Key width SW1 | 7 – 17 mm |
| Spring stroke Z | 0.5 – 2.3 mm |
| Suction force (-600mbar) | 5.5 – 33 N |
