Schmalz part

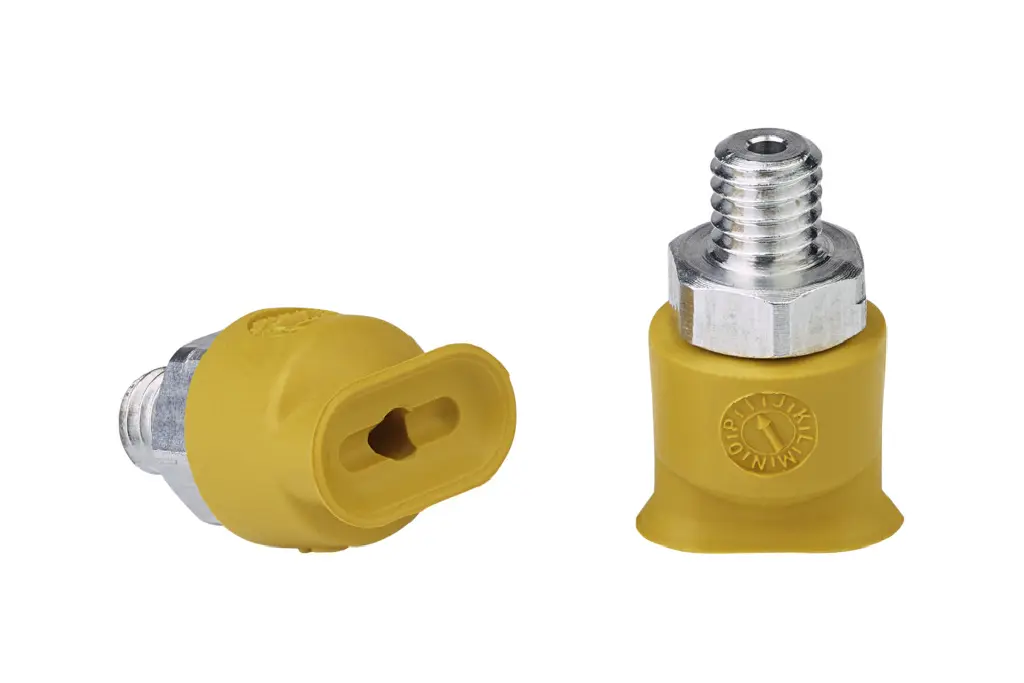

SGON 7x3.5 NBR-ESD-55 M3-AG
Part no.: 10.01.05.00939
Flat suction cup (oval) for long and also curved workpieces
Price
$21.56
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 7x3.5 |
|---|---|
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | M3-M |
Product family
Suction area (LxW) from 4 x 2 mm to 90 x 30 mm
| Bmax(S) | 2.5 – 33 mm |
|---|---|
| Suction cup width Bs | 2 – 30 mm |
| Nominal diameter dn | 1 – 3.5 mm |
| Thread G1 | M5-M, M3-M, G1/4"-F, G1/4"-M, G1/8"-F … |
| Height H | 8 – 36 mm |
| Thread length LG1 | 3 – 12 mm |
| Lmax.(S) | 4.5 – 92.5 mm |
| Ls | 4 – 90 mm |
| Key width SW1 | 5 – 17 mm |
