Schmalz part

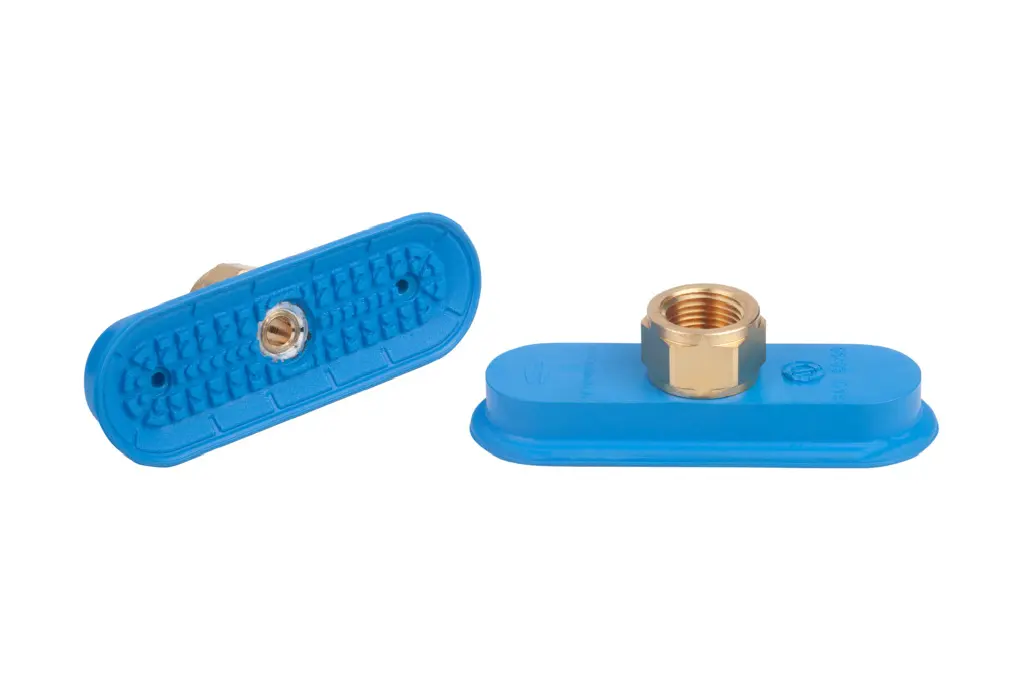

SAOF 90x30 NBR-45 NPT3/8-IG
Part no.: 10.01.05.00810
Flat suction cup (oval) for very dynamic handling of smooth and oily workpieces
Price
$50.18
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 90x30 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Nickel plated |
| Connection | NPT3/8-IG |
Product family
Suction area (LxW) from 50 x 16 mm to 140 x 70 mm
| Bmax(S) | 18 – 95 mm |
|---|---|
| Suction cup width Bs | 14.6 – 86.1 mm |
| Nominal diameter dn | 4 – 18.6 mm |
| Height H | 18 – 34 mm |
| Lmax.(S) | 52 – 185 mm |
| Ls | 48.6 – 176.1 mm |
| Spring stroke Z | 3 – 8.9 mm |
| Suction force (-600mbar) | 31 – 660 N |
| Lateral force | 24 – 800 N |
