Schmalz part

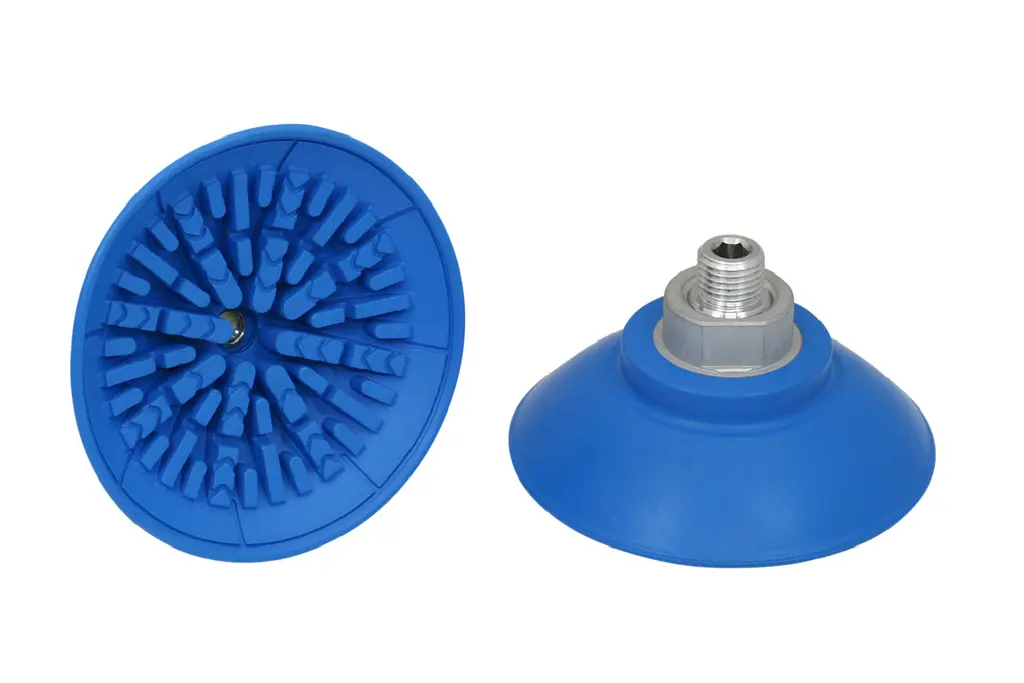

SAF 80 NBR-45 G3/8-AG
Part no.: 10.01.01.11462
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
Price
$70.92
excl. VAT, shipping & packagingSpecifications
| Size | 80 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-AG |
Product family
Suction area (Ø) from 30 mm to 125 mm
| Diameter Dmax(S) | 34 – 135 mm |
|---|---|
| Diameter Ds | 31 – 125 mm |
| Suction force (-600mbar) | 38 – 660 N |
| Lateral force | 30 – 475 N |
| Lateral force oily surface | 28 – 400 N |
| Volume | 1.7 – 119 cm³ |
| Workpiece radius min. (convex) | 40 – 165 mm |
| Hose inner diameter (recom.) d | 4 – 9 mm |
| Size | 30 – 125 |
