PFYN 15 VU1-72 G1/8-AG 10.01.01.00556
Schmalz part

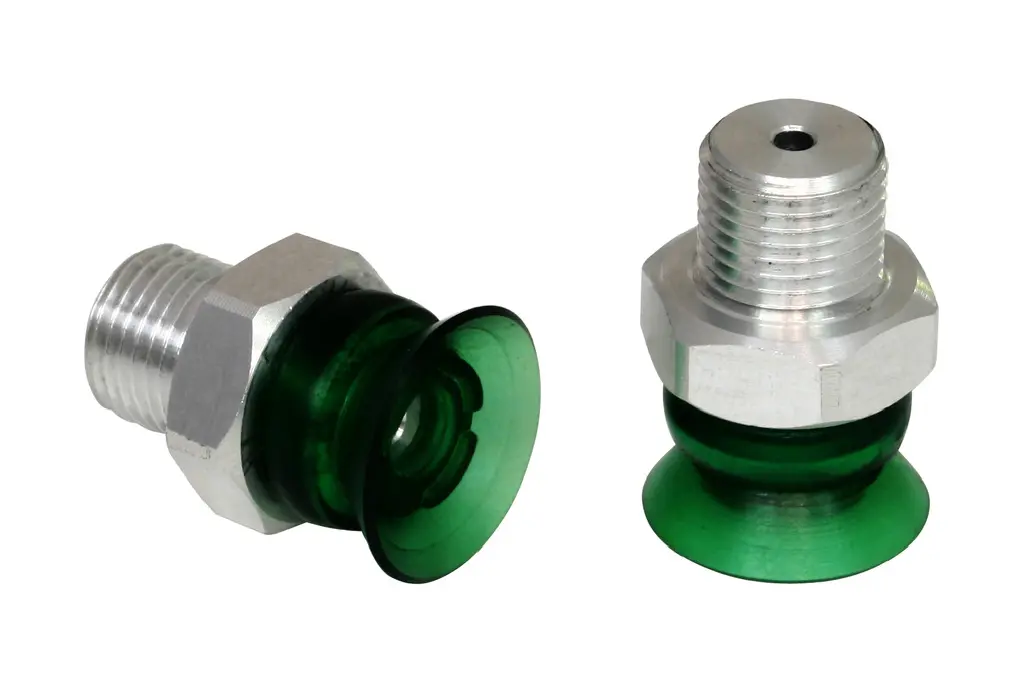

PFYN 15 VU1-72 G1/8-AG

Part no.: 10.01.01.00556

Flat suction cup (round) for smooth or slightly rough surfaces

Price
$48.27
excl. VAT, shipping & packaging
In stock: 7PCE
View at SchmalzAll Flat Suction Cups PFYN VU1 variants

Specifications

Size15
Suction cup materialVulkollan VU1
Material hardness [Shore A]72 (Shore A)
Nipple materialAluminum
ConnectionG1/8"-M

Product family

Suction area (Ø) from 15 mm to 95 mm

Diameter Dmax(S)17.5 – 101 mm
Nominal diameter dn2 – 6 mm
Diameter Ds14.5 – 95 mm
Thread G1G1/4"-M, G1/4"-F, G1/8"-M, G1/8"-F
Height H14.5 – 40 mm
Thread length LG18 – 12 mm
Key width SW114 – 22 mm
Spring stroke Z1.5 – 6 mm
Size15 – 95
