Schmalz part

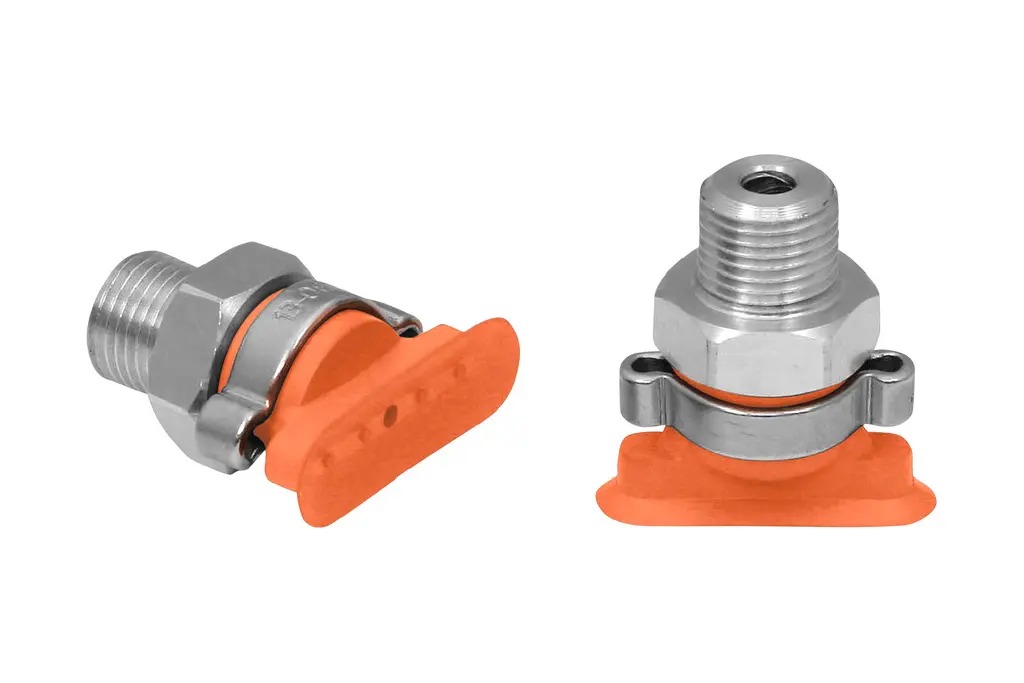

SGON 24x8 HT1-ESD-60 G1/8-AG
Part no.: 10.01.05.01278
Flat suction cup (oval) for long and also curved workpieces
Price
$41.09
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 24x8 |
|---|---|
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Material property | non-marking |
| Nipple material | Aluminum |
| Connection | G1/8"-M |
Product family
Flat suction cups with an oval shape are designed for long and narrow workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.1 – 27 g |
|---|---|
| Nominal diameter dn | 1.2 – 4 mm |
| Suction cup width Bs | 2 – 29 mm |
| Lmax.(S) | 4.5 – 92.5 mm |
| Ls | 4 – 89 mm |
| Height H | 6 – 21 mm |
| Spring stroke Z | 0.5 – 12.8 mm |
| Suction cup material | Silicone SI-HD, Nitrile rubber NBR, Nitrile rubber NBR-conductive, High temperature material HT1, Nitrile rubber NBR-ESD … |
| Dimension (LxW) | 12x4, 7x3.5, 4x2, 70 x 25, 15x5 … |
