Schmalz part

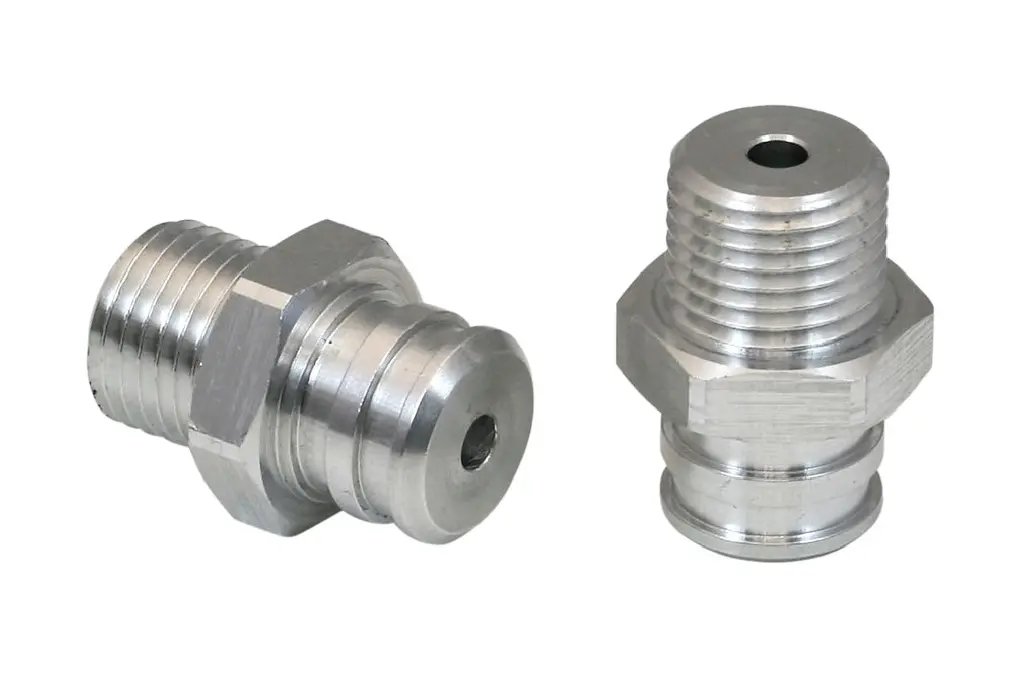

SA-NIP N023 G1/4-AG DN350
Part no.: 10.01.05.00122
Suction cup connection nipple
Price
$8.70
excl. VAT, shipping & packagingSpecifications
| Thread G1 | G1/4"-M |
|---|---|
| Length L1 | 25 (mm) |
| Fitting length | 5 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
Product family
Flat suction cups with an oval shape are designed for long and narrow workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.1 – 27 g |
|---|---|
| Nominal diameter dn | 1.2 – 4 mm |
| Suction cup width Bs | 2 – 29 mm |
| Lmax.(S) | 4.5 – 92.5 mm |
| Ls | 4 – 89 mm |
| Height H | 6 – 21 mm |
| Spring stroke Z | 0.5 – 12.8 mm |
| Suction cup material | Silicone SI-HD, Nitrile rubber NBR, Nitrile rubber NBR-conductive, High temperature material HT1, Nitrile rubber NBR-ESD … |
| Dimension (LxW) | 12x4, 7x3.5, 4x2, 70 x 25, 15x5 … |
