Schmalz part

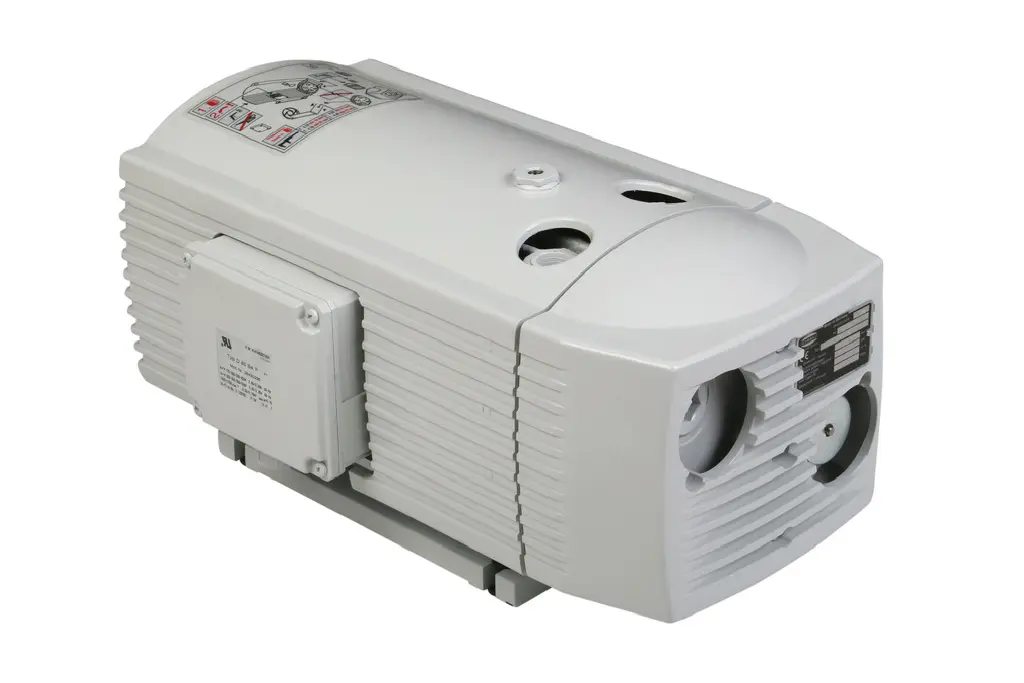

EVE-TR 40 AC3 IE3-TYP4
Part no.: 10.03.01.00531
Oil-free pump with constant suction rate, robust, requires little maintenance
Price
$7,280.82
excl. VAT, shipping & packagingSpecifications
| Current type | Three phase A.C. |
|---|---|
| Sound pressure level at 50 Hz | 67 (dB(A)) |
| Voltage at 50 Hz | D290 V / Y500 V ±10 % |
| Voltage 60 Hz | S079 |
| Voltage at 60 Hz | D330 V / Y575 V ±10 % |
| Suction rate (50 Hz) | 40 (m³/h) |
| Suction rate (60 Hz) | 48 (m³/h) |
| Vacuum (50 Hz) | -850 (mbar) |
| Rated power at 50 Hz | 1.3 (kW) |
| Rated power at 60 Hz | 1.5 (kW) |
| Version | IE3:CAN |
| Approval | UL |
| Weight | 40 (kg) |
Product family
The EVE-TR series by Schmalz consists of oil-free, dry-running rotary-vane vacuum pumps designed for various applications in handling airtight workpieces. They offer a suction capacity ranging from 2 m³/h to 350 m³/h with a maximum vacuum of 92% (–850 mbar).
| Max Vacuum | –850 mbar |
|---|---|
| Suction Capacity EVE-TR 25 AC3 (50 Hz) | 25 m³/h |
| Suction Capacity EVE-TR 25 AC3 (60 Hz) | 30 m³/h |
| Rated Power EVE-TR 25 AC3 (50 Hz) | 0.75 kW |
| Rated Power EVE-TR 25 AC3 (60 Hz) | 0.9 kW |
| Sound Pressure Level EVE-TR 25 AC3 (50 Hz) | 62 dB |
| Weight EVE-TR 25 AC3 | 26 kg |
| Suction Capacity EVE-TR 40 AC3 F | 40 m³/h |
| Rated Power EVE-TR 40 AC3 F | 1.25 kW |
| Suction Capacity EVE-TR-M 2.3 24V-DC | 2.04 m³/h |
| Max Vacuum EVE-TR-M 2.3 24V-DC | –780 mbar |
| Rated Power EVE-TR-M 2.3 24V-DC | 55 W |
