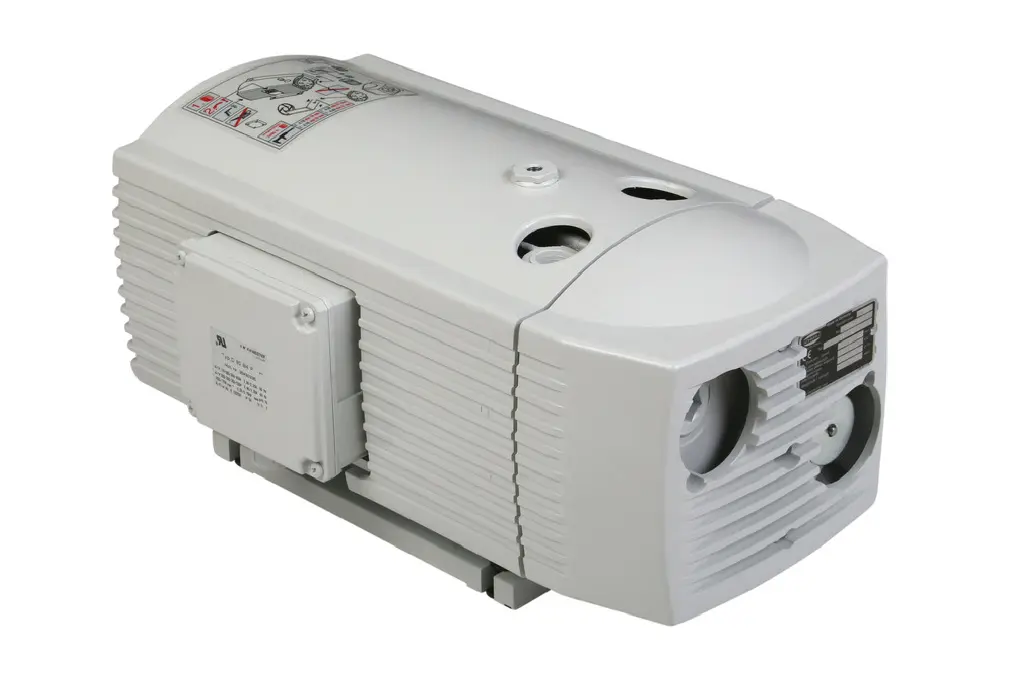

EVE-TR
Manufacturer: Schmalz (J. Schmalz GmbH)
Dry-running rotary-vane pump
The EVE-TR series by Schmalz consists of oil-free, dry-running rotary-vane vacuum pumps designed for various applications in handling airtight workpieces. They offer a suction capacity ranging from 2 m³/h to 350 m³/h with a maximum vacuum of 92% (–850 mbar).
Price: Price $1,197.87-$28,311.90 (41 priced variants; 19 in stock)
Specifications
- Max Vacuum
- –850 mbar
- Suction Capacity EVE-TR 25 AC3 (50 Hz)
- 25 m³/h
- Suction Capacity EVE-TR 25 AC3 (60 Hz)
- 30 m³/h
- Rated Power EVE-TR 25 AC3 (50 Hz)
- 0.75 kW
- Rated Power EVE-TR 25 AC3 (60 Hz)
- 0.9 kW
- Sound Pressure Level EVE-TR 25 AC3 (50 Hz)
- 62 dB
- Weight EVE-TR 25 AC3
- 26 kg
- Suction Capacity EVE-TR 40 AC3 F
- 40 m³/h
- Rated Power EVE-TR 40 AC3 F
- 1.25 kW
- Suction Capacity EVE-TR-M 2.3 24V-DC
- 2.04 m³/h
- Max Vacuum EVE-TR-M 2.3 24V-DC
- –780 mbar
- Rated Power EVE-TR-M 2.3 24V-DC
- 55 W
