Schmalz part

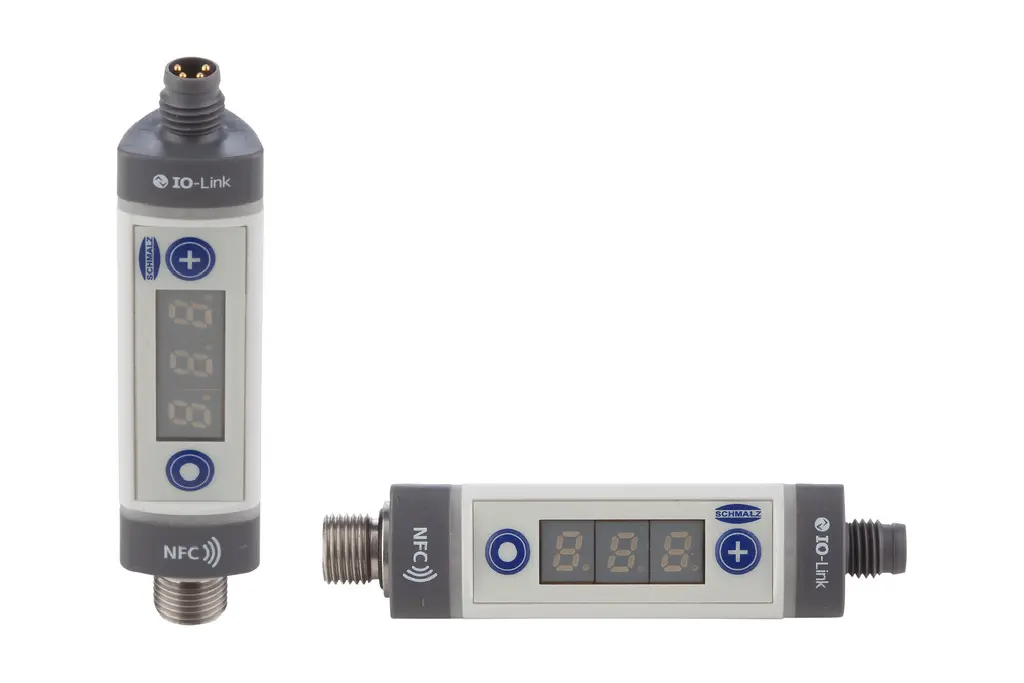

VSi V D M8-4
Part no.: 10.06.02.00577
Universal vacuum and pressure switch with IO-Link function
Price
$195.04
excl. VAT, shipping & packagingSpecifications
| Measuring range [bar] | -1,0 ... 0,0 bar |
|---|---|
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
Product family
Vacuum switches ensure the safe operation of a vacuum circuit. With the electronic design, the existing vacuum is measured via a sensor and issues an analog or digital switching signal.
| Measuring range | bar, -1...0bar |
|---|---|
| Height H | 4.6 – 50 mm |
| Width B | 6.6 – 33.8 mm |
| Length L | 13.5 – 61.5 mm |
| Height H2 | 3.5 – 20 mm |
| Hole spacing X1 | 9 – 44 mm |
| Internal diameter d1 | 3.2 – 4.5 mm |
| Wall thickness s | 1.5 – 1.6 mm |
| Height H1 | 30 – 42.5 mm |
