Schmalz part

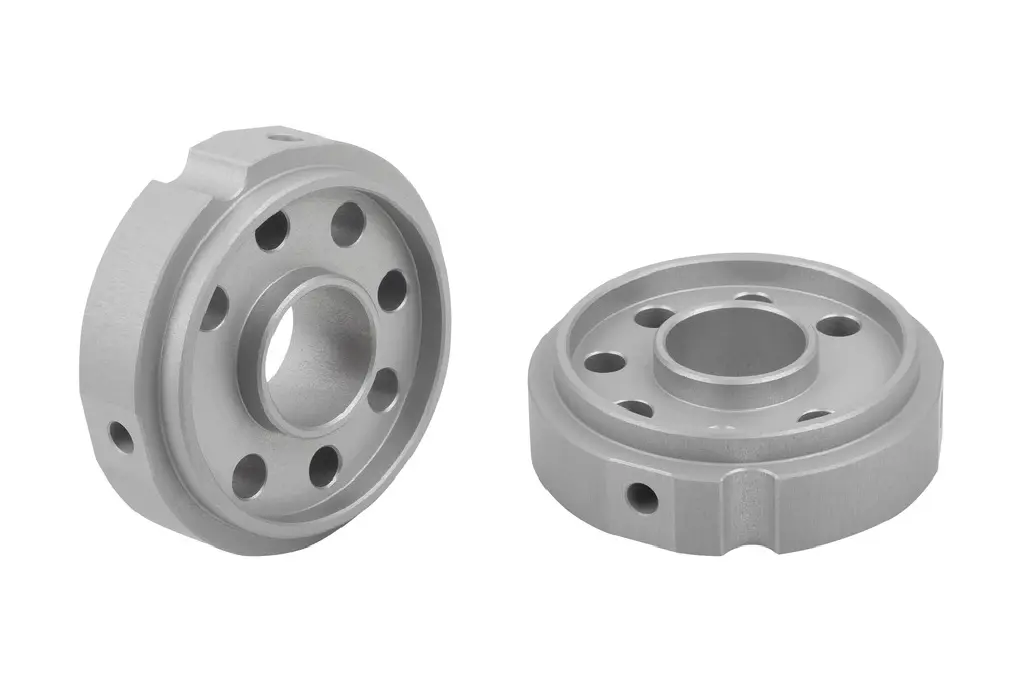

FLAN-PL RET-1
Part no.: 10.03.01.00358
Flange plate (round)
Price
$134.82
excl. VAT, shipping & packagingSpecifications
| Length L | 13.5 (mm) |
|---|---|
| Type | RET-1 |
| Type | Sawyer-o-CLSMA |
Product family
Assembled Vacuum End Effector VEE
| Length L | 10 – 218.3 mm |
|---|---|
| Pitch diameter D mk1 | 31.5 – 64 mm |
| Outside diameter D | 55 – 89 mm |
| Outside diameter D2 | 20 – 57 mm |
| Length L1 | 18 – 61.4 mm |
| Internal diameter d1 | 4.5 – 6.6 mm |
| Length L2 | 4 – 112 mm |
| Internal diameter d | 17 – 43 mm |
| Thread G1 | G1/4"-F, M5-F, M4-F, M6-F |
