Schmalz part

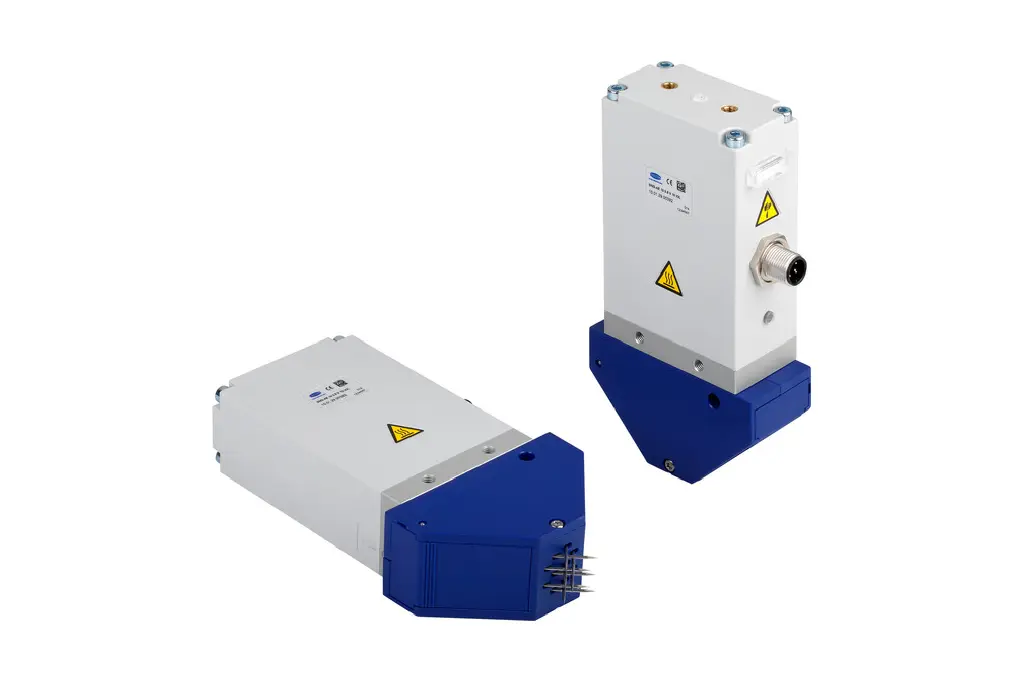

SNGi-AE 10 0.8 V 10 IOL
Part no.: 10.01.29.00392
Electrical needle gripper in maintenance-friendly design and infinitely adjustable stroke
Price
$2,631.95
excl. VAT, shipping & packagingSpecifications
| Number of needles | 10 |
|---|---|
| Needle diameter | 0.8 (mm) |
| Needle stroke Z(NA) | 10 (mm) |
| Pressure range (operating pressure) [bar] | bar |
| Communication | IO-Link (Class B) |
Product family
Needle stroke max. 3 mm to max. 20 mm (variable)
| Width B | 35 mm |
|---|---|
| Thread G1 | M5-F |
| Thread G2 | M12x1-M |
| Thread G4 | M5-F |
| Height H | 140.2 – 178 mm |
| Height H2 | 41.7 – 78.2 mm |
| Height H3 | 86.2 – 121 mm |
| Length L | 65 – 120 mm |
| Length L1 | 80 – 107.5 mm |
