Schmalz part

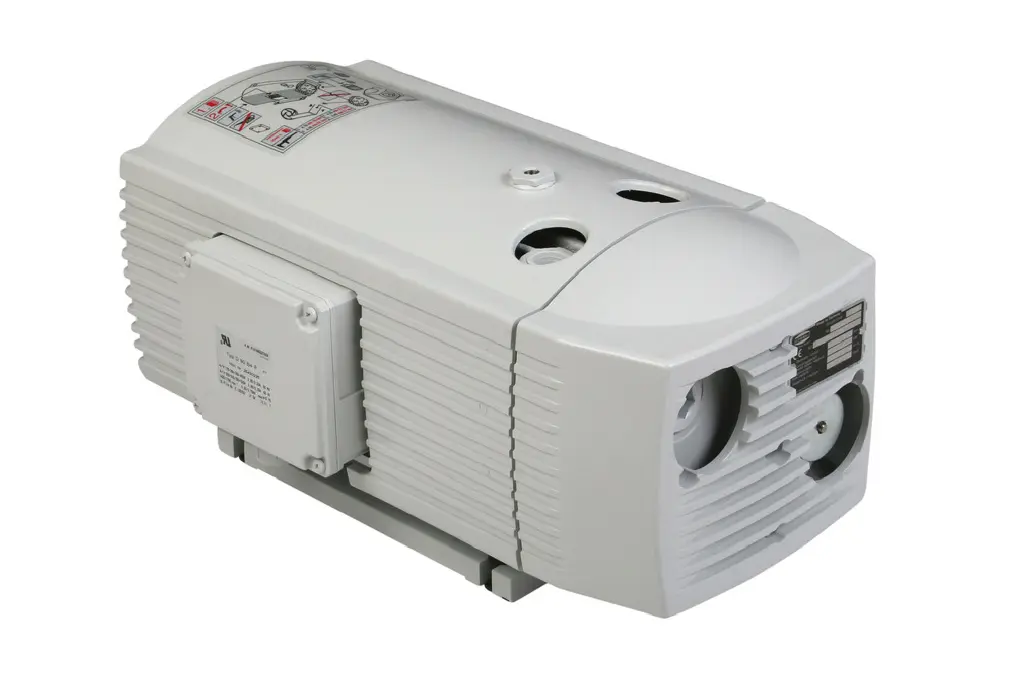

EVE-TR-X 25 AC3 VBV
Part no.: 10.03.01.00215
Oil-free pump with const. suct. rate robust, requ. little maintenance long service life, cont. operation
Price
$6,783.53
excl. VAT, shipping & packagingSpecifications
| Current type | Three phase A.C. |
|---|---|
| Voltage at 50 Hz | 190 - 242 V / 342 - 440 V AC3 |
| Voltage at 60 Hz | 190 - 265 V / 342 - 500 V AC3 |
| Voltage 60 Hz | S089 |
| Suction rate (50 Hz) | 25 (m³/h) |
| Suction rate (60 Hz) | 30 (m³/h) |
| Sound pressure level at 50 Hz | 62 (dB(A)) |
| Vacuum (50 Hz) | -900 (mbar) |
| Vacuum (60 Hz) | -900 (mbar) |
| with | Vacuum-limitter valve |
| Rated power at 50 Hz | 0.75 (kW) |
| Rated power at 60 Hz | 0.9 (kW) |
| Weight | 26 (kg) |
Product family
Suction rate from 10 m³/h to 129 m³/h
| Width B | 206 – 470 mm |
|---|---|
| Width B2 | 40 – 107.5 mm |
| Internal diameter d | 7 – 12 mm |
| Thread G3 | G1/2"-F, G3/4"-F, G1"-F, G1-1/2"-F |
| Height H | 189 – 336 mm |
| Length L | 429 – 862 mm |
| Length L2 | 73 – 140 mm |
| Hole spacing X1 | 160 – 398 mm |
| Hole spacing Y1 | 112 – 245 mm |
