Schmalz part

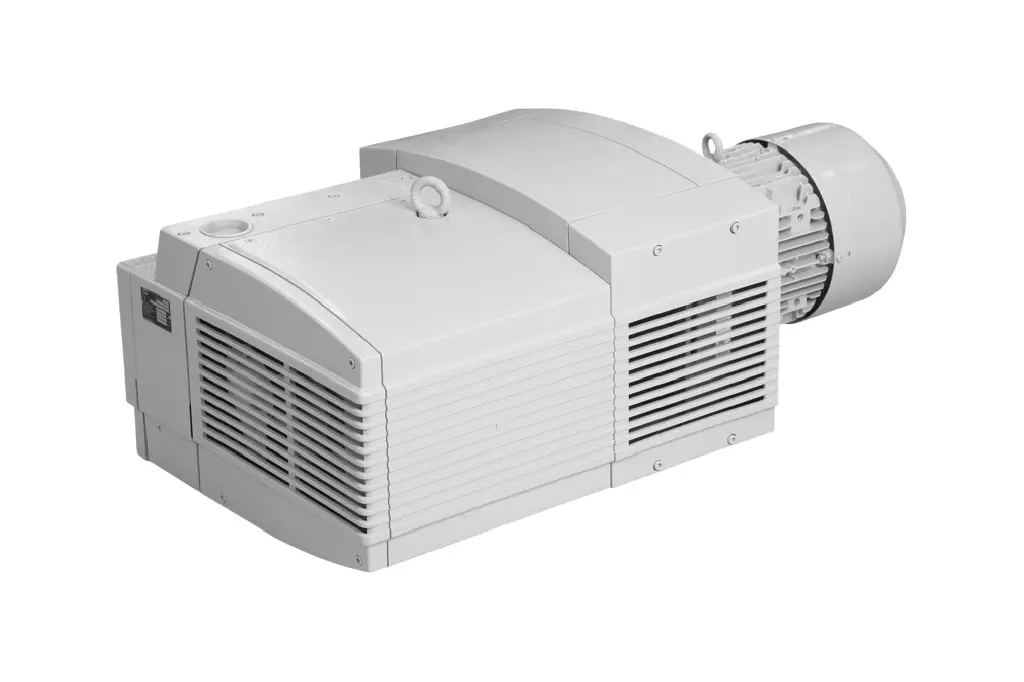

EVE-TR 100 AC3 IE3-TYP2
Part no.: 10.03.01.00324
Oil-free pump with constant suction rate, robust, requires little maintenance
Price
$16,404.23
excl. VAT, shipping & packagingSpecifications
| Current type | Three phase A.C. |
|---|---|
| Voltage 60 Hz | S067 |
| Voltage at 60 Hz | YY230 / Y460 V ±10 % |
| Suction rate (60 Hz) | 112 (m³/h) |
| Rated power at 60 Hz | 3.6 (kW) |
| Version | IE3:US/CAN |
| Approval | UL/CSA |
| Weight | 108 (kg) |
Product family
Suction rate from 2 m³/h to 350 m³/h
| Width B | 80.7 – 644 mm |
|---|---|
| Width B2 | 8 – 178 mm |
| Height H | 123 – 528 mm |
| Length L | 154 – 1180 mm |
| Weight | 2.4 – 258 kg |
| Product family | EVE-TR |
| Hole spacing X1 | 28 – 645 mm |
| Thread G3 | G3/8"-F, G1/4"-F, G1/2"-F, G3/4"-F, G3/4-IG … |
| Hole spacing Y1 | 60 – 380 mm |
