Schmalz part
SXT-TC-F4-0-C1.5IN
Part no.: 10.07.13.00435

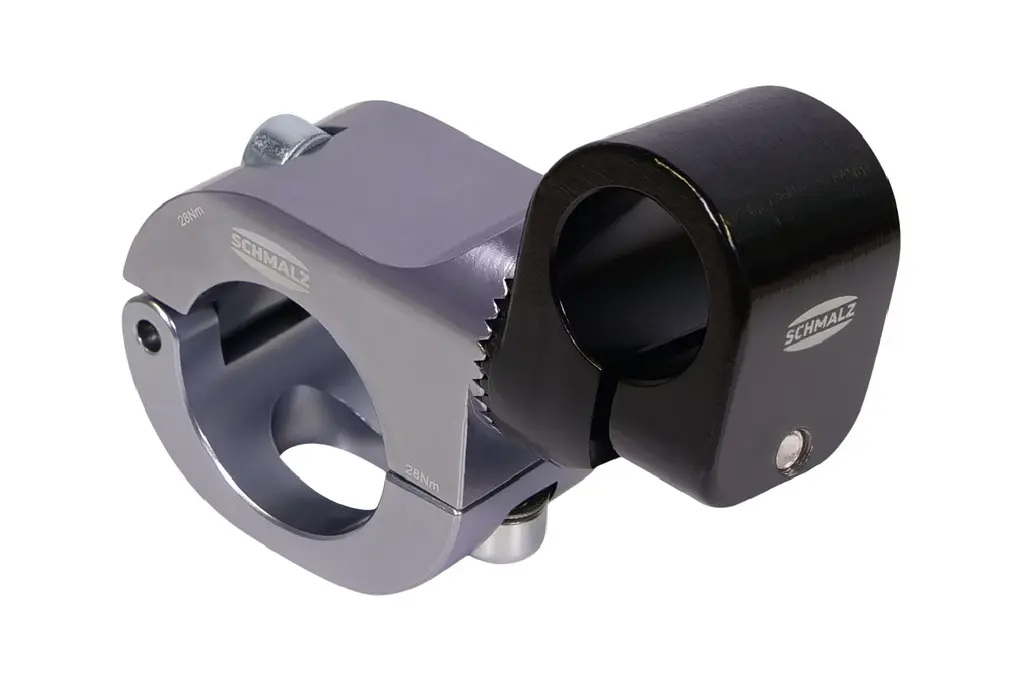

Cross beam connect. for swivel arms, for connection to pipe tooling, with gear bracket
Price
$217.34
excl. VAT, shipping & packagingSpecifications
| Connection 1 | SXT-CON-GB-F-D40 |
|---|---|
| Connection 2 | SXT-CON-GB-MO-1.5IN |
| Angle | 0 (°) |
Product family
Cross beam connector made of tube clamps 25 and 40 mm
| Connection 1 | SXT-CON-GB-F-D25, SXT-CON-GB-F-D40, SXT-CON-GB-F-1IN |
|---|---|
| Connection 2 | SXT-CON-GB-M-D40, SXT-CON-GB-M-D25, SXT-CON-GB-MO-D40, SXT-CON-GB-M-A5, SXT-CON-GB-MO-1.5IN |
| Width B | 35 mm |
| Internal diameter d | 25 – 40 mm |
| Internal diameter d1 | 25 – 40 mm |
| Height H | 56 – 80.5 mm |
| Height H2 | 56 – 66 mm |
| Height H3 | 20 – 25 mm |
| Height H4 | 20 – 26 mm |
