Schmalz part

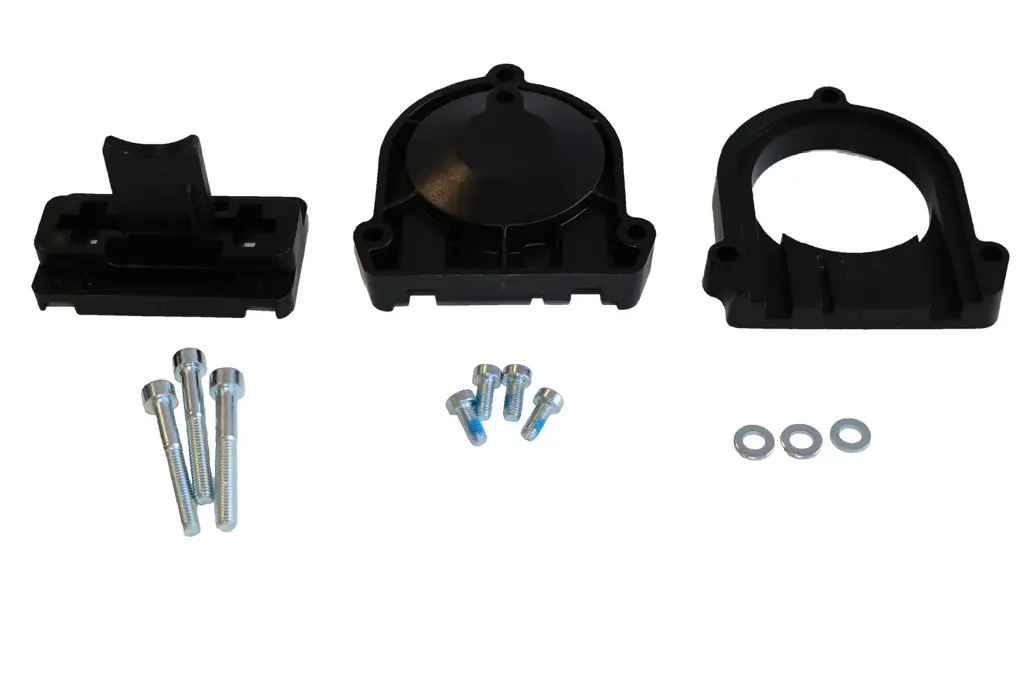

FUEH-PL 66x31x88 KZG
Part no.: 14.04.04.00230
Guide plate
Price
Price on request
excl. VAT, shipping & packagingSpecifications
Detailed specifications are listed on the Schmalz product page.
Product family
Thanks to the modular system, Schmalz cranes and chain hoists allow you to configure solutions for almost all internal handling and logistics processes.
| Lift capacity (jib cranes) | up to 140 kg |
|---|---|
| Lift capacity (overhead crane systems) | up to 1,200 kg |
| Lift capacity (chain hoists) | up to 2,500 kg |
| Maximum dimensions (LxWxH) | 30 x 8.5 x 5.5 m |
| Maximum load capacity | approx. 500 kg |
| Material | galvanized steel |
| Profile cross-section | 140 x 140 x 4 mm |
| Standard lifting height | 3,000 mm |
