Schmalz part

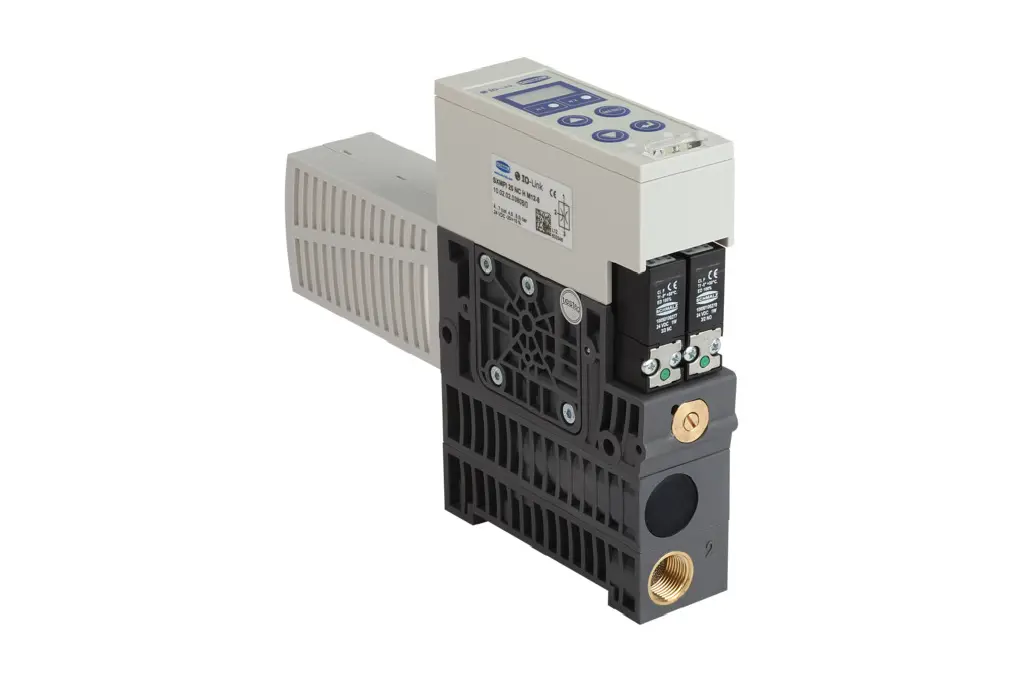

SXMPi 25 NC H PC M12-8
Part no.: 10.02.02.04189
Compact ejector with Condition Monitoring, power blow-off function and pneu. air-saving function
Price
$2,331.65
excl. VAT, shipping & packagingSpecifications
| Nozzle diameter | 2.5 (mm) |
|---|---|
| Control valve | Normally closed |
| Pneumatic connection | Horizontal |
| Electrical connection | Male connect M12, 8 pol |
| Communication | IO-Link (Class A) |
| Suction rate (max.) | 185 (l/min) |
| Air consumption suction | 290 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Max. vacuum | -850 (mbar) |
| Operation mode | Pressure Control |
| Sound pressure level free | 67 (dB(A)) |
| Protection type IP | IP 65 |
Product family
Suction rate from 185 l/min to 220 l/min
| Suction rate (max.) | 6.533 – 220 l/min |
|---|---|
| Air consumption suction | 10.241 – 380 l/min |
| Air consumption blow-off | 7.062 – 19.2 cfm |
| Width B | 39 mm |
| Internal diameter d | 5.5 mm |
| Thread G2 | M12x1-M |
| Height H | 108 mm |
| Height H1 | 120 – 160 mm |
| Height H2 | 54 mm |
