Schmalz part

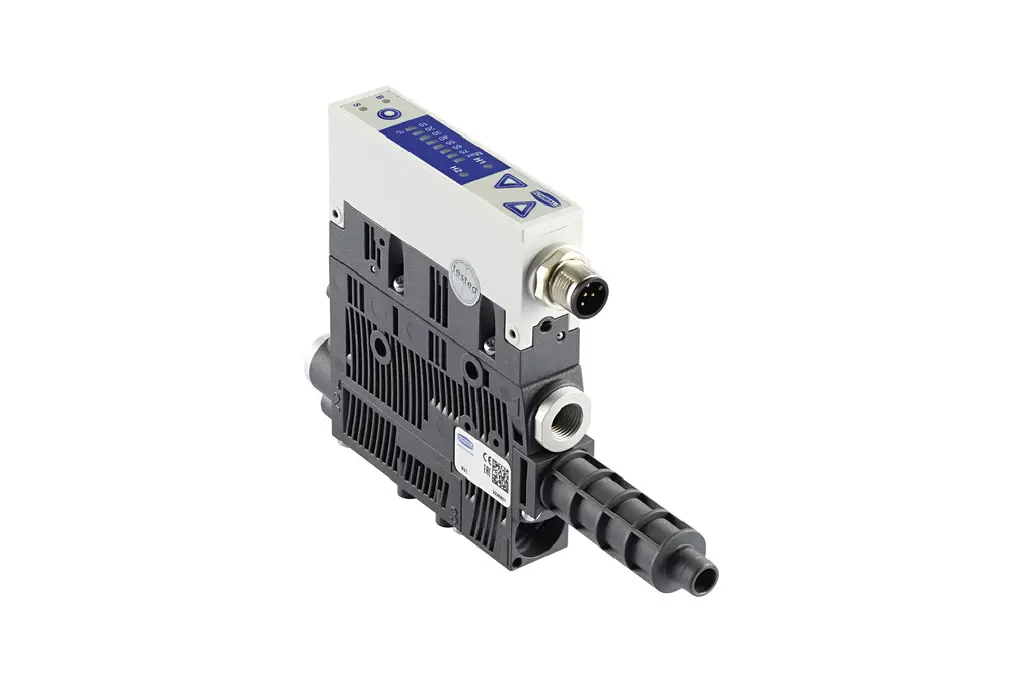

SCPS-UHV-HD 16 G02 NC NPN
Part no.: 10.02.02.05234
Compact ejector with special nozzle technology for increased vacuum level
Price
$973.43
excl. VAT, shipping & packagingSpecifications
| Shape compact ejectors | HD |
|---|---|
| Nozzle diameter | 1.6 (mm) |
| Connection | G1/8"(1)-G1/8"(2) |
| Suction rate (max.) | 53.2 (l/min) |
| Air consumption suction | 105.6 (l/min) |
| Sound pressure level free | 75 (dB(A)) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Max. vacuum | -910 (mbar) |
| Control valve | Normally closed |
| Operation mode | Digital air-saving function |
| Protection type IP | IP 65 (with plug) |
Product family
Suction rate from 13 l/min to 54 l/min
| Suction rate (max.) | 0.459 – 53.2 l/min |
|---|---|
| Air consumption suction | 0.607 – 105.6 l/min |
| Air consumption blow-off | 4.178 – 7.2 m³/h |
| Width B | 18 mm |
| Width B1 | 18.6 mm |
| Outside diameter D | 16.5 mm |
| Internal diameter d | 4.4 mm |
| Outside diameter D2 | 8.9 – 9 mm |
| Hole size d3 | 2.6 mm |
