Schmalz part

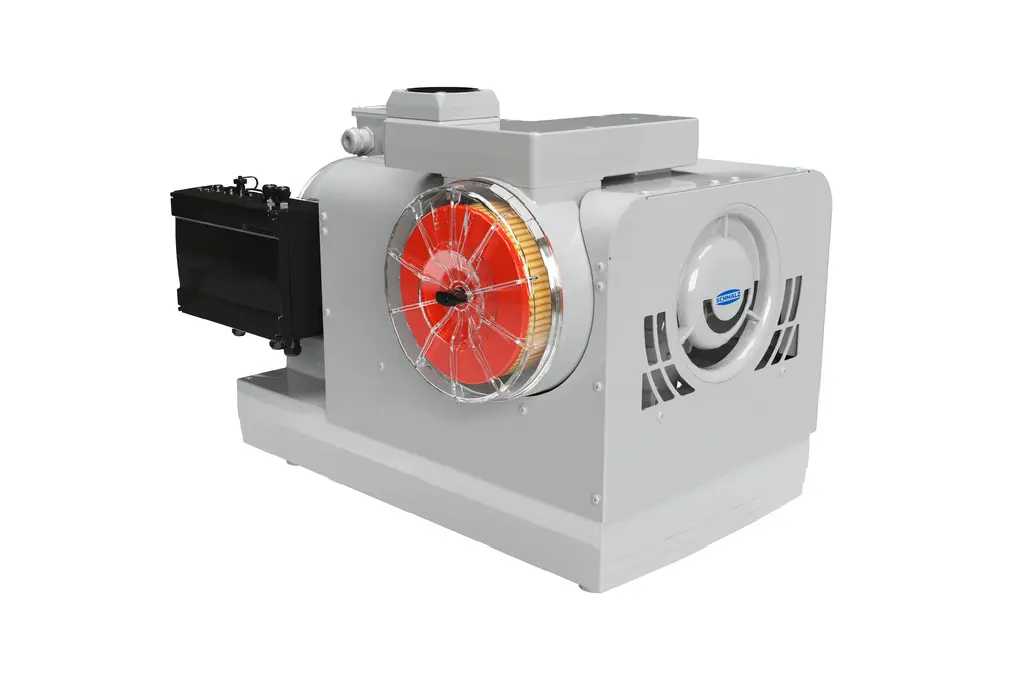

EVE-KL 150 AC3 FU
Part no.: 10.03.01.00833
Oil-free pump with constant suction rate, robust, requires little maintenance
Price
$22,568.04
excl. VAT, shipping & packagingSpecifications
| Voltage at 50 Hz | 400 - 480 V AC3 |
|---|---|
| Voltage 60 Hz | 400-480AC3 |
| with | Frequency converter control |
| Suction rate (60 Hz) | 180 (m³/h) |
| Vacuum (60 Hz) | 900 (mbar) |
| Approval | UL/CSA |
| Rated power at 60 Hz | 4 (kW) |
| Weight | 208 (kg) |
Product family
Suction rate from 90 m³/h to 310 m³/h
| Width B | 440 – 483 mm |
|---|---|
| Width B1 | 537 – 580 mm |
| Width B2 | 70 – 91.5 mm |
| Thread G2 | G1-1/2"-F, G2"-F |
| Thread G3 | G2-1/2"-F |
| Thread G5 | M10-F |
| Height H | 431 – 541 mm |
| Length L | 735 – 808 mm |
| Height H1 | 532.5 – 624 mm |
