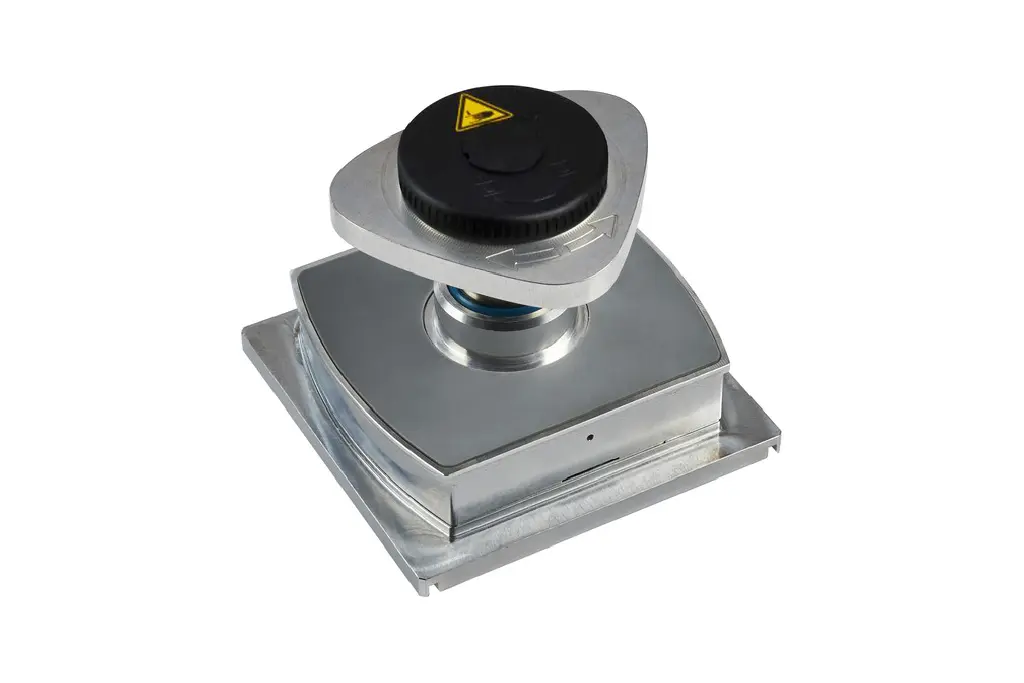

Schmalz part
VCMC-R-QUICK 160x160x45 30/40/50
Part no.: 10.01.12.04763
Mechanical clamp for narrow and frame parts, for grid tables
Price
$2,176.72
excl. VAT, shipping & packagingSpecifications
| Shape | QUICK |
|---|---|
| Base area | 160 x 160 mm |
| Stroke Z | 9 (mm) |
| Height H | 45 (mm) |
| Clamping range [mm] | 15.0 ... 85.0 mm |
| Grid | 30/40/50 |
| Additional function vacuum block | Toolless height adjustment |
Product family
Schmalz vacuum blocks for grid tables enable simple and flexible use; without complex installation. The non-slip fixings enable secure clamping of the workpieces even with high processing forces. This makes them ideal for complex five-axis applications without a wear plate.
| Width B | 4 – 150 mm |
|---|---|
| Height H | 6 – 13.5 mm |
| Length L | 6 – 150 mm |
| Type | R 30/50, R 30/40 |
