Schmalz part

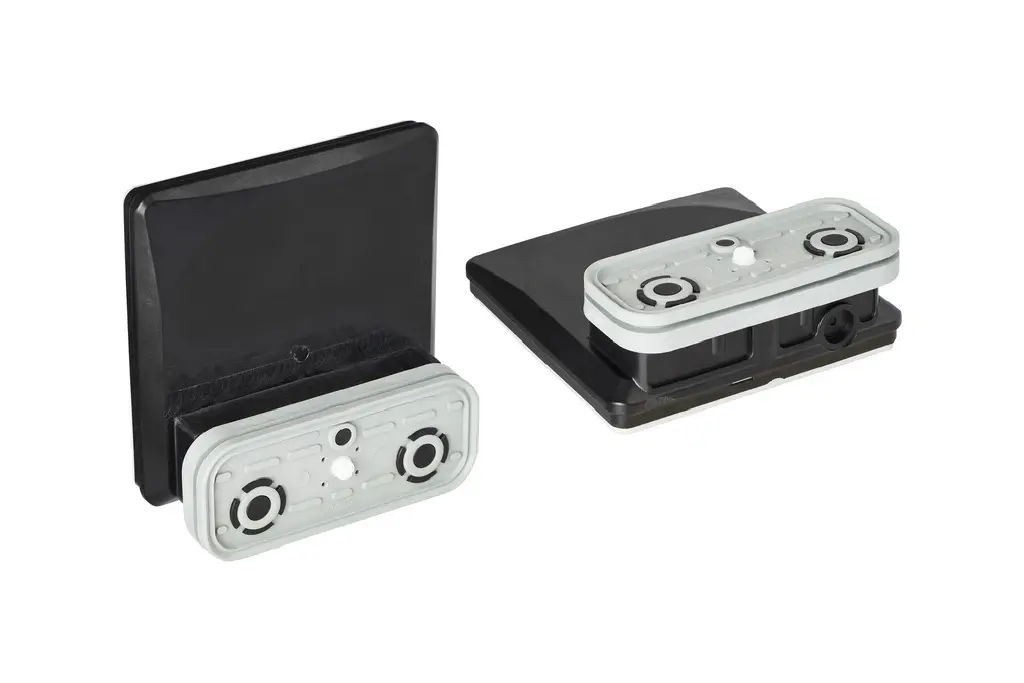

VCBL-R 120x50x45 30/40 TV
Part no.: 10.01.12.05437
Vacuum block for grid tables
Price
$214.15
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 120x50 |
|---|---|
| Height H | 45 (mm) |
| Additional function vacuum block | Touch valve |
Product family
Schmalz vacuum blocks for grid tables enable simple and flexible use; without complex installation. The non-slip fixings enable secure clamping of the workpieces even with high processing forces. This makes them ideal for complex five-axis applications without a wear plate.
| Width B | 4 – 150 mm |
|---|---|
| Height H | 6 – 13.5 mm |
| Length L | 6 – 150 mm |
| Type | R 30/50, R 30/40 |
