Schmalz part

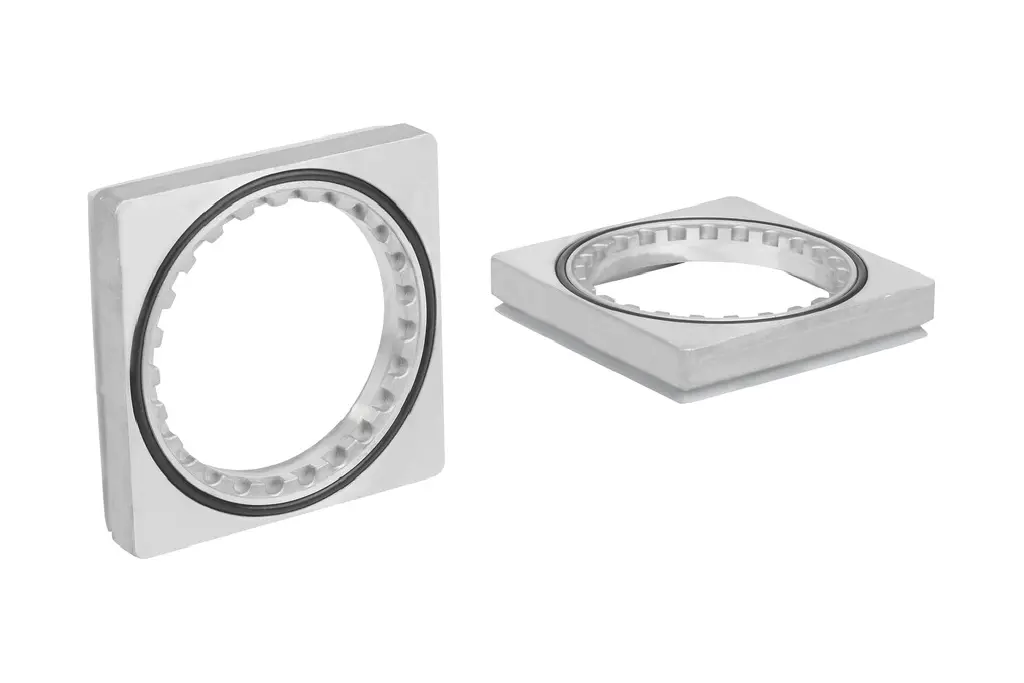

AP-R-130x130x16-30/40
Part no.: 10.01.15.00279
Adapter-Plate AP for usage of Vacuum Blocks VCBL-B and VCBL-S6-CUP
Price
$337.10
excl. VAT, shipping & packagingSpecifications
| for | Grid table systems |
|---|---|
| Working height H (AH) | 45 (mm) |
| Length L | 130 (mm) |
| Width B | 130 (mm) |
| Height H | 16 (mm) |
| Grid | 30/40 |
| Recommended slot width x slot depth [mm] | 5/7 |
Product family
Schmalz vacuum blocks for grid tables enable simple and flexible use; without complex installation. The non-slip fixings enable secure clamping of the workpieces even with high processing forces. This makes them ideal for complex five-axis applications without a wear plate.
| Width B | 4 – 150 mm |
|---|---|
| Height H | 6 – 13.5 mm |
| Length L | 6 – 150 mm |
| Type | R 30/50, R 30/40 |
