Schmalz part

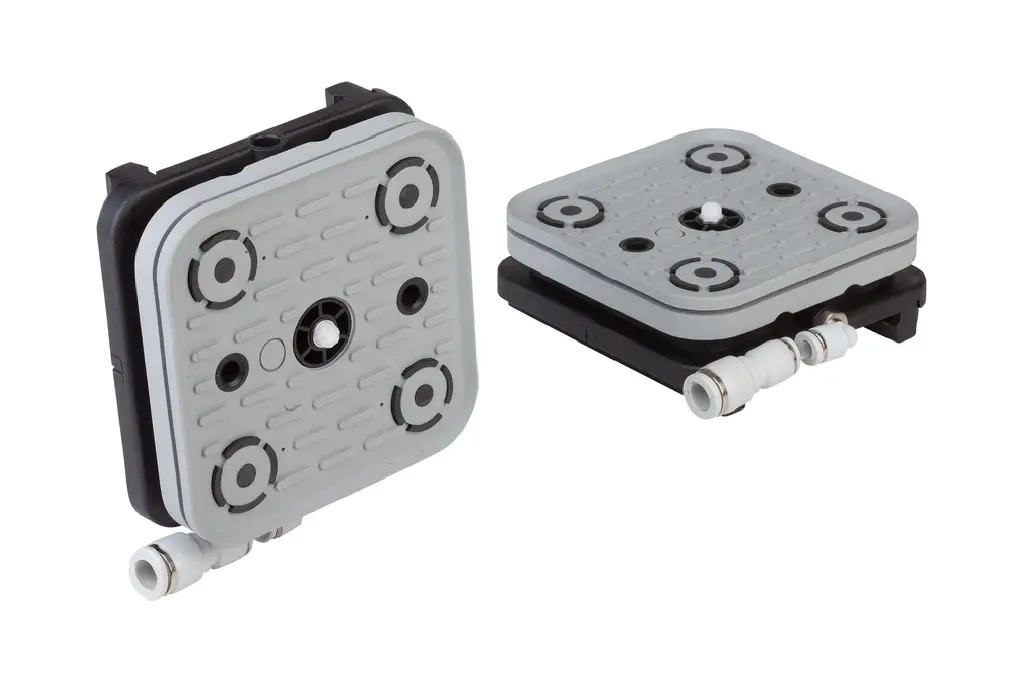

VCBL-S1 120x120x32.7 TV-S
Part no.: 10.01.12.02386
Vacuum block for SCM/Morbidelli console - Type 1
Price
$320.99
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 120 x 120 |
|---|---|
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 32.7 (mm) |
| Additional function vacuum block | Touch valve + hose connection |
Product family
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
| Applications | For Flexmatic machine tables with automatic positioning, for start and pilot machine tables with position detection |
|---|---|
| Width B | 7.6 – 25.5 mm |
| Height H | 6 – 20 mm |
| Length L | 12 – 135 mm |
