Schmalz part

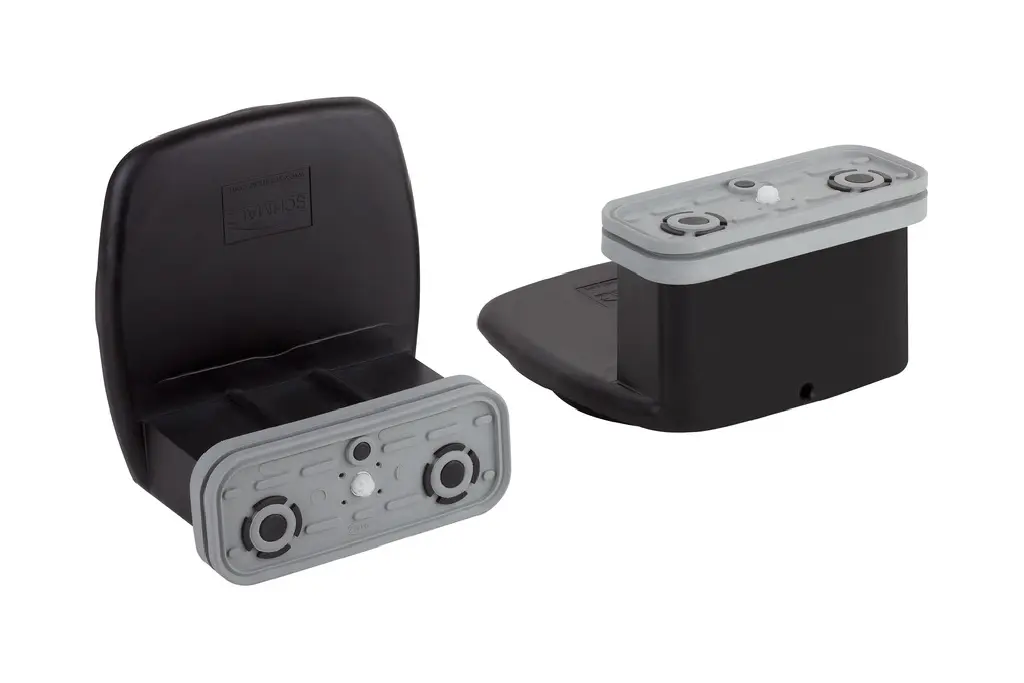

VCBL-B 120x50x74 TV
Part no.: 10.01.12.03175
Vacuum block
Price
$436.97
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 120 x 50 |
|---|---|
| Height H | 74 (mm) |
| Additional function vacuum block | Touch valve |
Product family
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
| Outside diameter D | 90 – 100.5 mm |
|---|---|
| Height H | 0.4 – 15.5 mm |
| Utilization design | Vacuum block VCBL-S |
| Internal diameter d | 17 mm |
| Length L | 0.4 mm |
| Material | Steel |
| Weight | 150.8 g |
