Schmalz part

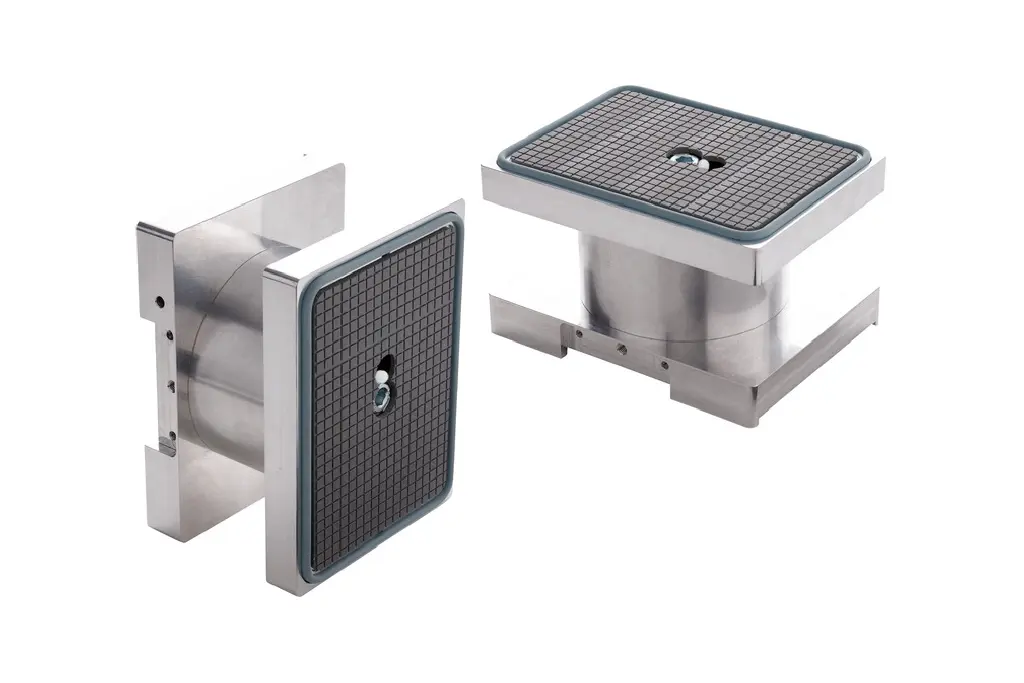

VCBL-K2-HD 170x128x125 S-360-15 TV
Part no.: 10.01.12.05327
Vacuum block for Schmalz 2-circuit console
Price
$1,377.92
excl. VAT, shipping & packagingSpecifications
| Shape | Heavy duty |
|---|---|
| Dimension (LxW) | 170x128 |
| Height H | 125 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve |
Product family
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
| Utilization design | Mechanical clamp VCMC, Mechanical clamp VCMC-K2 |
|---|---|
| Length L | 35 – 152 mm |
| Width B | 35 – 126 mm |
| Height H | 12.5 – 26.5 mm |
