Schmalz part

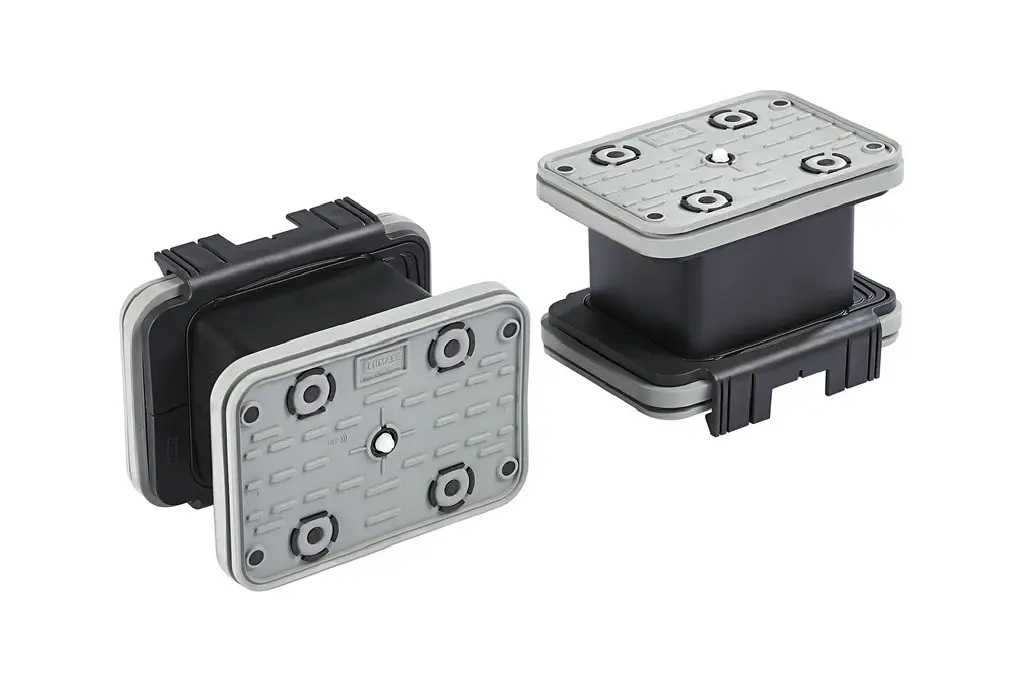

VCBL-K1-PRO 160x115x100 TV
Part no.: 10.01.12.04077
Vacuum block for Schmalz 1-circuit console
Price
$459.86
excl. VAT, shipping & packagingSpecifications
| Version | PRO |
|---|---|
| Dimension (LxW) | 160x115 |
| Dimension suction plate bottom | 160x115 mm |
| Height H | 100 (mm) |
| Additional function vacuum block | Touch valve |
Product family
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
| Height H | 4.5 – 34.6 mm |
|---|---|
| Width B | 113 – 126 mm |
| Length L | 152 – 166 mm |
| Outside diameter D | 110 – 128 mm |
| Weight | 81.9 g |
