Schmalz part

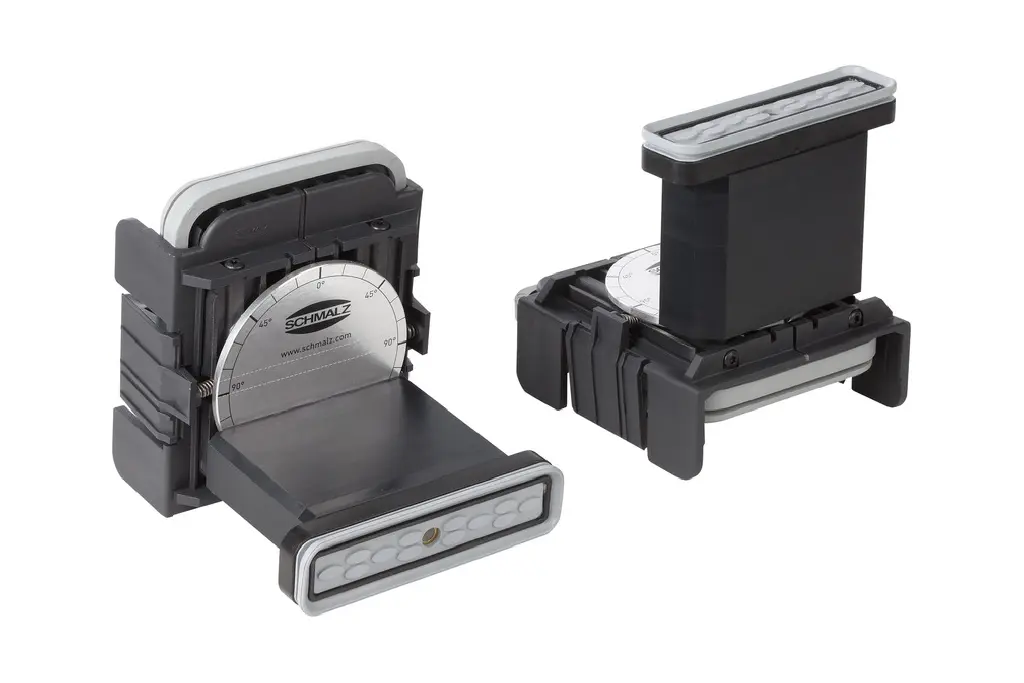

VCBL-K1 130x30x125 D-360
Part no.: 10.01.12.02929
Vacuum block for Schmalz 1-circuit console
Price
$953.37
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 130 x 30 |
|---|---|
| Dimension suction plate bottom | 140 x 115 mm |
| Height H | 125 (mm) |
| Arrangement | Can be turned 360° |
Product family
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
| Height H | 4.5 – 34.6 mm |
|---|---|
| Width B | 113 – 126 mm |
| Length L | 152 – 166 mm |
| Outside diameter D | 110 – 128 mm |
| Weight | 81.9 g |
