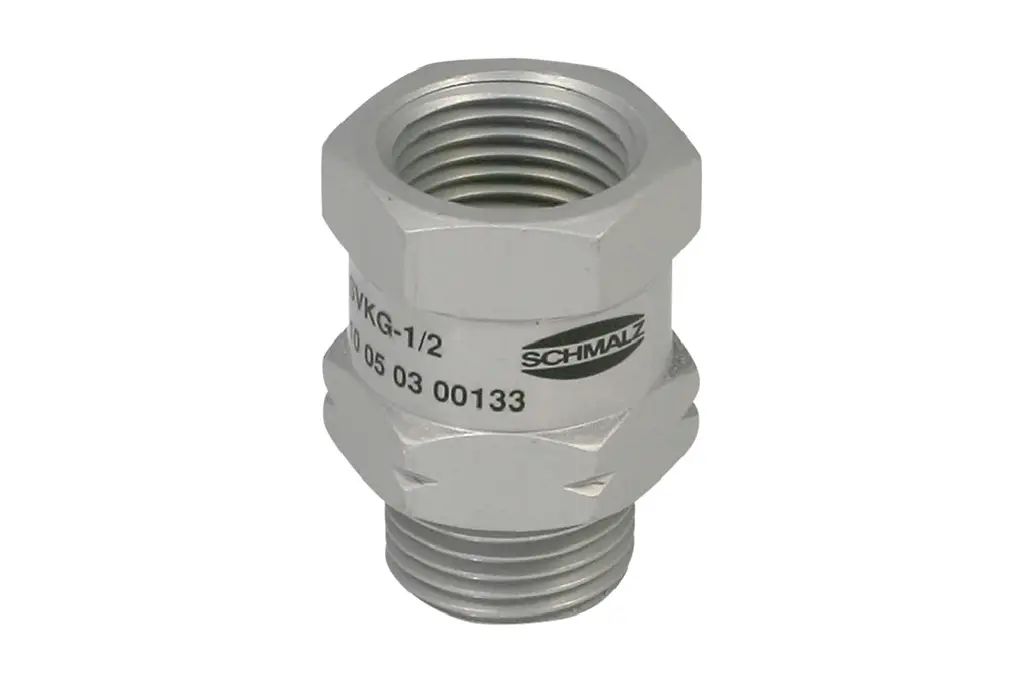

Schmalz part
SVKG G1/2-AG
Part no.: 10.05.03.00133
Check valve for deactivation of unused suction cups
Price
$104.37
excl. VAT, shipping & packagingSpecifications
| Thread G1 | G1/2"-F |
|---|---|
| Thread G2 | G1/2"-M |
Product family
Connection thread from M5 to G1/2"
| Required suction capacity for pu = -0.3 bar | 0.07 – 22.6 m³/h |
|---|---|
| Required suction capacity for pu = -0.6 bar | 0.08 – 28.6 m³/h |
| Thread G1 | G1/4"-M, G1/8"-M, M5-M, G3/8"-M, G1/2"-M … |
| Thread G2 | G1/4"-F, G1/8"-F, M5-F, G3/8"-F, G1/2"-F … |
| Length L | 10.9 – 42.5 mm |
| Thread length LG1 | 4.3 – 14 mm |
| Thread length LG2 | 4 – 14 mm |
| Key width SW1 | 8 – 27 mm |
| Flow rate max. | 4.8 – 47.4 m³/h |
