Schmalz part

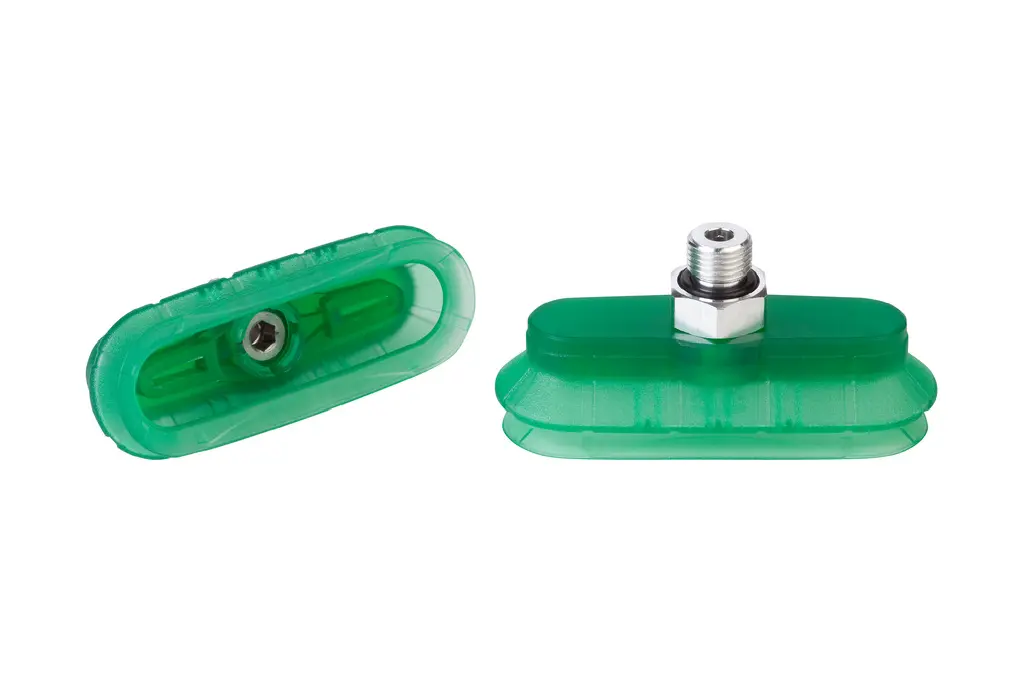

SPOB1 60x20 ED-65 G1/8-AG
Part no.: 10.01.06.03510
Bellows suction cup (oval) with 1.5 folds for maximum dynamics on karton and self-supporting packaging
Price
$58.12
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 60 x 20 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-M |
| Number of folds | 1.5 |
Product family
Suction area (LxW) from 60 x 20 mm and 100 x 40 mm
| Width B2 | 12.8 – 25.9 mm |
|---|---|
| Bmax(S) | 27.5 – 52 mm |
| Suction cup width Bs | 21.4 – 41.4 mm |
| Nominal diameter dn | 3.6 – 6.1 mm |
| Thread G1 | G1/8"-M, G1/8"-F, G1/4"-M, G1/4"-F |
| Height H | 24 – 47 mm |
| Length L2 | 53.5 – 88.9 mm |
| Thread length LG1 | 7.5 – 12 mm |
| Lmax.(S) | 67 – 113 mm |
