Schmalz part

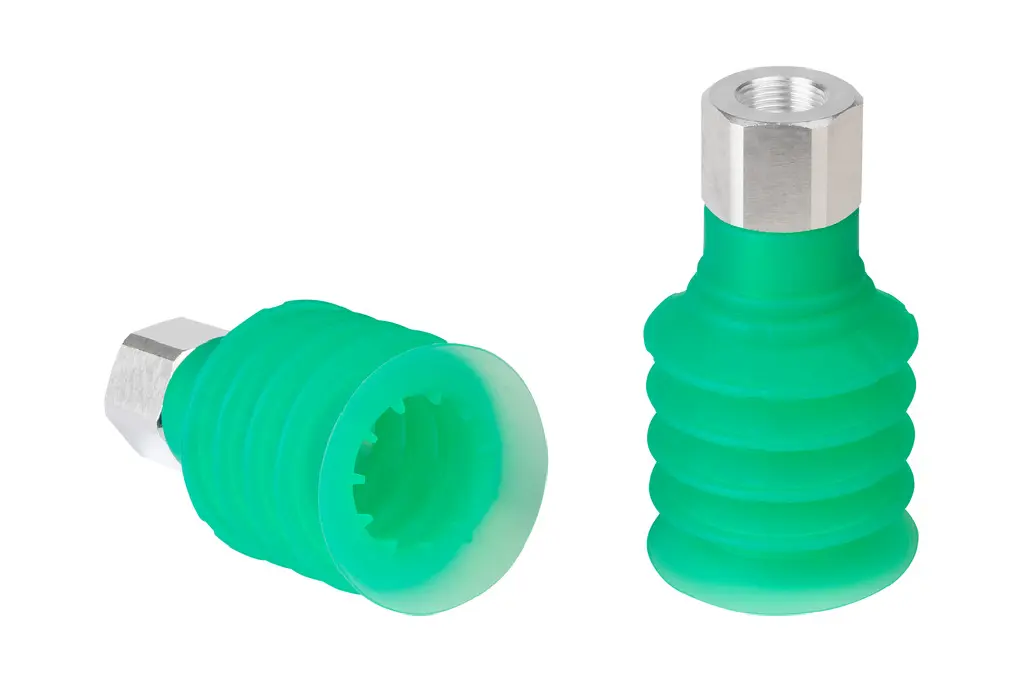

SPB4 50 SI-55 G1/4-IG
Part no.: 10.01.06.03535
Bellows suction cup (round) for very uneven workpieces
Price
$53.96
excl. VAT, shipping & packagingSpecifications
| Size | 50 |
|---|---|
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/4"-F |
| Number of folds | 4.5 |
Product family
Suction area (Ø) from 20 mm to 50 mm
| d2 | 13.5 – 30 mm |
|---|---|
| Nominal diameter dn | 4 – 15 mm |
| Diameter Dmax(S) | 24.4 – 51.5 mm |
| Diameter Ds | 21.4 – 50.3 mm |
| Thread G1 | G1/4"-M, G1/8"-M, G3/8"-M, G1/4"-F, G1/8"-F … |
| Height H | 48.4 – 97.5 mm |
| Thread length LG1 | 7.5 – 16 mm |
| Key width SW1 | 22 – 27 mm |
| Spring stroke Z | 10 – 36.5 mm |
