Schmalz part

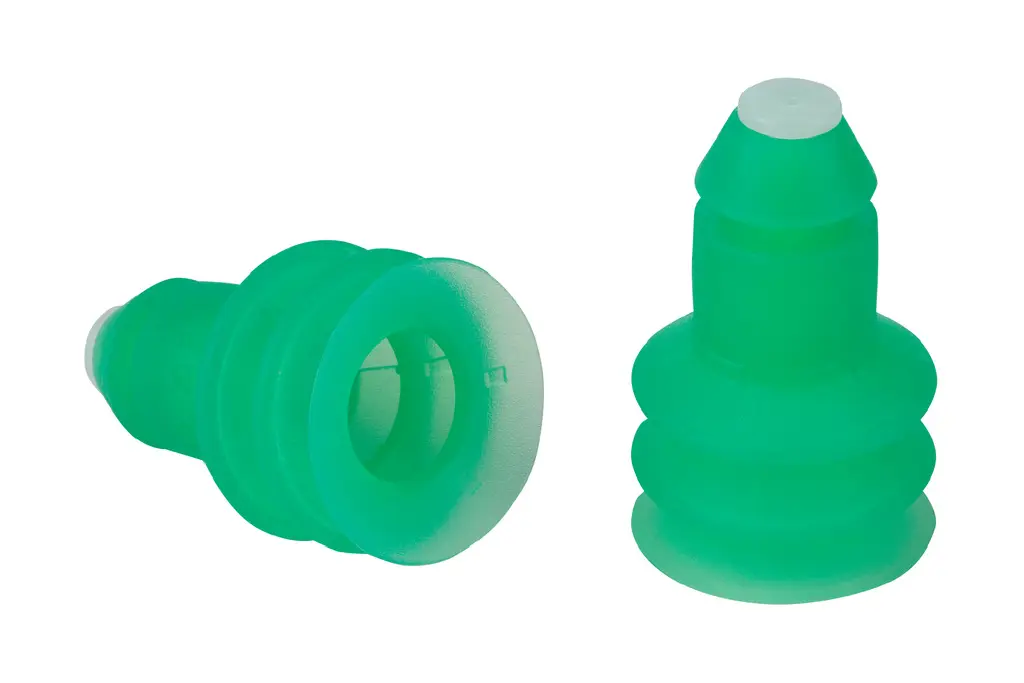

SPB2 20 SI-40 SW80 P
Part no.: 10.01.06.03220
Bellows suction cup (round) with 2.5 corr. for dynamic handling of cardboard and rigid packaging
Price
$12.31
excl. VAT, shipping & packagingSpecifications
| Size | 20 |
|---|---|
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 40 (Shore A) |
| Number of folds | 2.5 |
Product family
Suction area (Ø) 20 mm and 40 mm
| Internal diameter d | 8.5 – 12.5 mm |
|---|---|
| Internal diameter d1 | 11.8 – 15.7 mm |
| d2 | 10.2 – 17.8 mm |
| Hole size d5 | 7.9 – 11.5 mm |
| Nominal diameter dn | 0.8 – 1.5 mm |
| Outside diameter D1 | 20 – 43.5 mm |
| Diameter Dmax(S) | 20.5 – 44.6 mm |
| Diameter Ds | 19.6 – 42.7 mm |
| Height H | 24.3 – 47 mm |
