Schmalz part

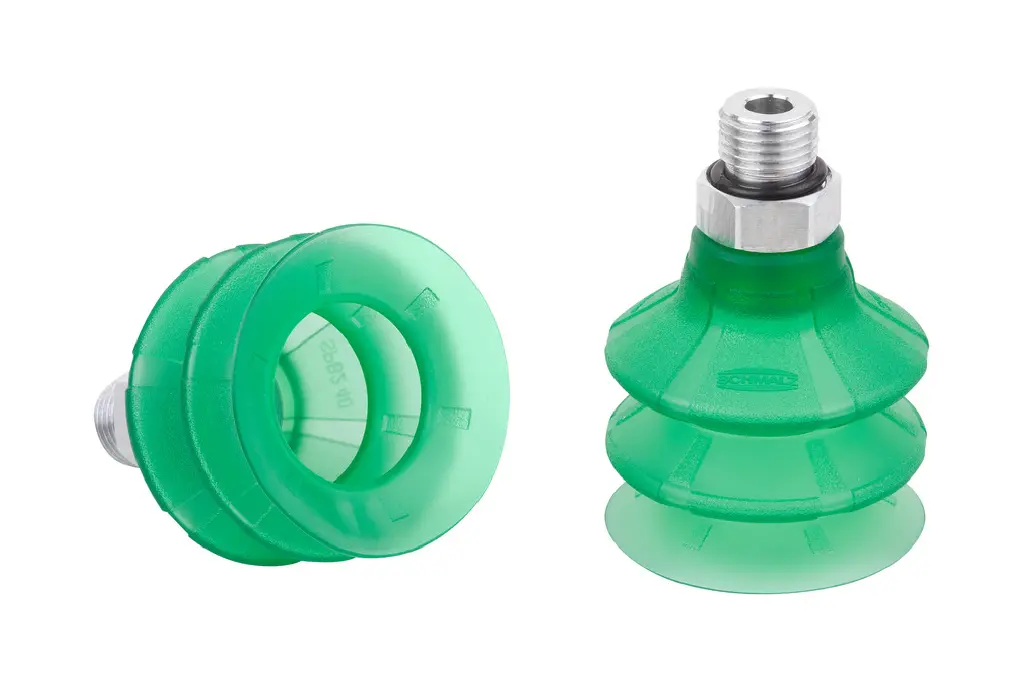

SPB2 40 ED-65 G1/4-AG
Part no.: 10.01.06.03459
Bellows suction cup (round) for very uneven workpieces
Price
$35.59
excl. VAT, shipping & packagingSpecifications
| Size | 40 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/4"-M |
| Number of folds | 2.5 |
Product family
Suction area (Ø) from 20 mm to 50 mm
| d2 | 12 – 27.1 mm |
|---|---|
| Nominal diameter dn | 4 – 6.1 mm |
| Outside diameter D1 | 22.1 – 52.2 mm |
| Diameter Dmax(S) | 23.5 – 55.5 mm |
| Diameter Ds | 21.4 – 51.3 mm |
| Thread G1 | G1/8"-F, G1/8"-M, G1/4"-F, G1/4"-M, NPT1/8"-M … |
| Height H | 31.3 – 73.1 mm |
| Thread length LG1 | 7.5 – 14 mm |
| Key width SW1 | 14 – 22 mm |
