Schmalz part

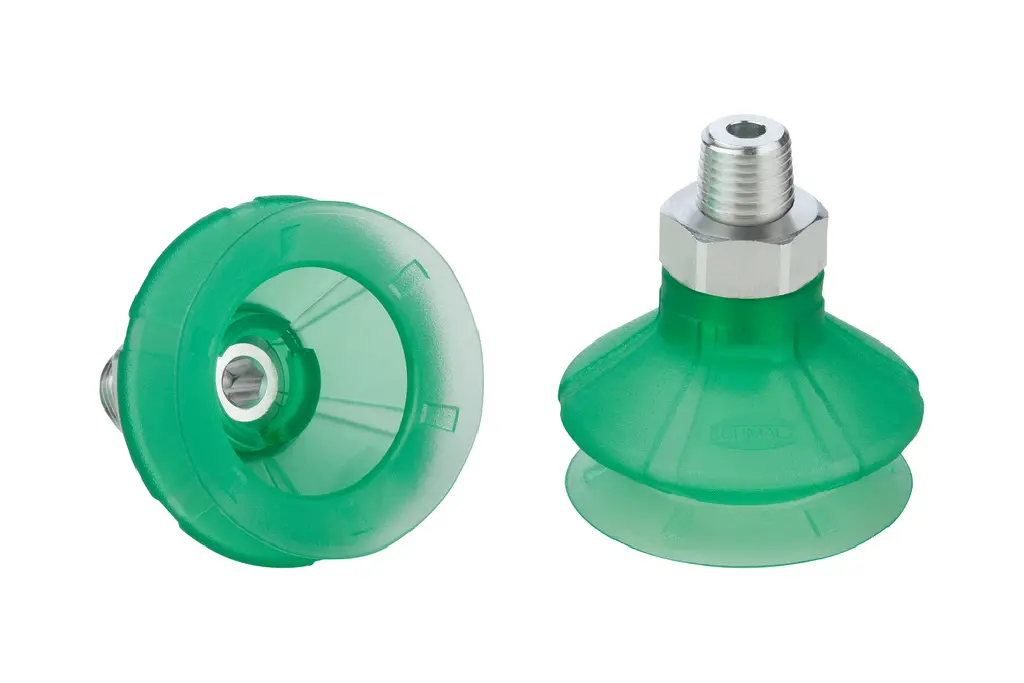

SPB1 30 ED-65 NPT1/4-AG
Part no.: 10.01.06.04956
Bellows suction cup (round) for very uneven workpieces
Price
$25.55
excl. VAT, shipping & packagingSpecifications
| Size | 30 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/4"-M |
| Number of folds | 1.5 |
Product family
Suction area (Ø) from 10 mm to 80 mm
| d2 | 5.6 – 56 mm |
|---|---|
| Nominal diameter dn | 1.8 – 8.9 mm |
| Diameter Dmax(S) | 11.3 – 88 mm |
| Diameter Ds | 9.8 – 81.4 mm |
| Thread G1 | M5-M, G1/8"-F, G1/8"-M, G1/4"-M, G1/4"-F … |
| Height H | 17.1 – 67.4 mm |
| Thread length LG1 | 4.7 – 16 mm |
| Key width SW1 | 8 – 27 mm |
| Spring stroke Z | 4 – 23.5 mm |
