Schmalz part

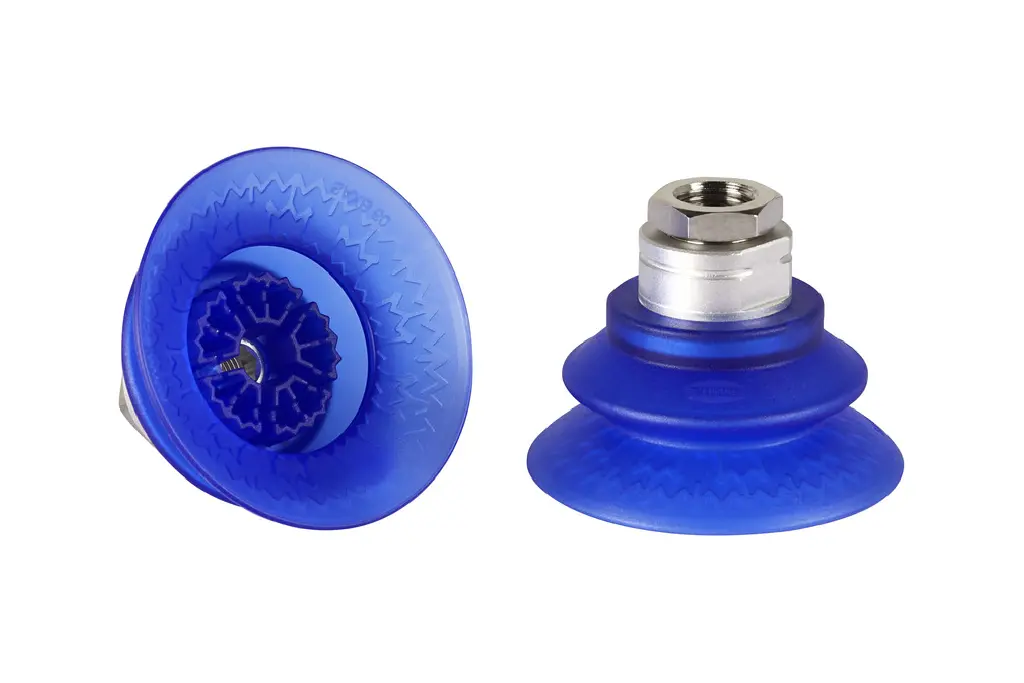

SAXB 60 ED-85 G1/4-IG
Part no.: 10.01.42.00011
High-speed bellows suction cup for adaptation to strongly curved and oiled surfaces
Price
$40.95
excl. VAT, shipping & packagingSpecifications
| Size | 60 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Nipple material | Brass |
| Connection | G1/4-IG |
| Number of folds | 1.5 |
Product family
Suction area (Ø) from 20 mm to 120 mm
| Diameter Dmax(S) | 23.5 – 131 mm |
|---|---|
| Diameter Ds | 20.4 – 120.6 mm |
| Outside diameter D1 | 20.6 – 95 mm |
| Height H | 25 – 72.8 mm |
| Key width SW1 | 17 – 22 mm |
| Spring stroke Z | 5.8 – 32 mm |
| Suction force (-600mbar) | 18 – 275 N |
| Lateral force | 13 – 479 N |
| Lateral force oily surface | 9.5 – 380 N |
