Schmalz part

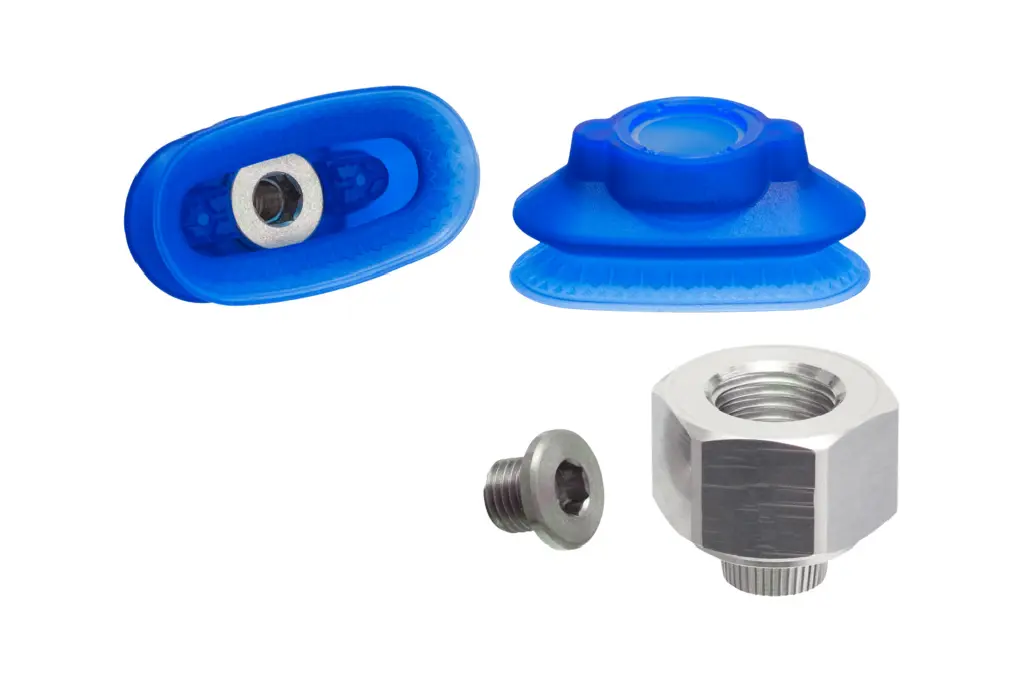

SAOXB 40x20 ED-85 G1/4-IG MOD
Part no.: 10.01.06.05996
High-speed bellows suction pad for max. dynamics on highly curved and oiled surfaces
Price
$56.95
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 40x20 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Number of folds | 1.5 |
| Nipple material | Aluminum |
Product family
Dimensions from 40 x 20 to 110 x 55 mm
| Height H | 23.9 – 48.5 mm |
|---|---|
| Spring stroke Z | 7.5 – 17 mm |
| Width B1 | 19.6 – 53.3 mm |
| Length L1 | 39.5 – 108.5 mm |
| Suction cup width Bs | 20 – 54 mm |
| Nominal diameter dn | 4 – 4.5 mm |
| Key width SW3 | 5 mm |
| Ls | 40 – 110 mm |
| Lmax.(S) | 43 – 114 mm |
